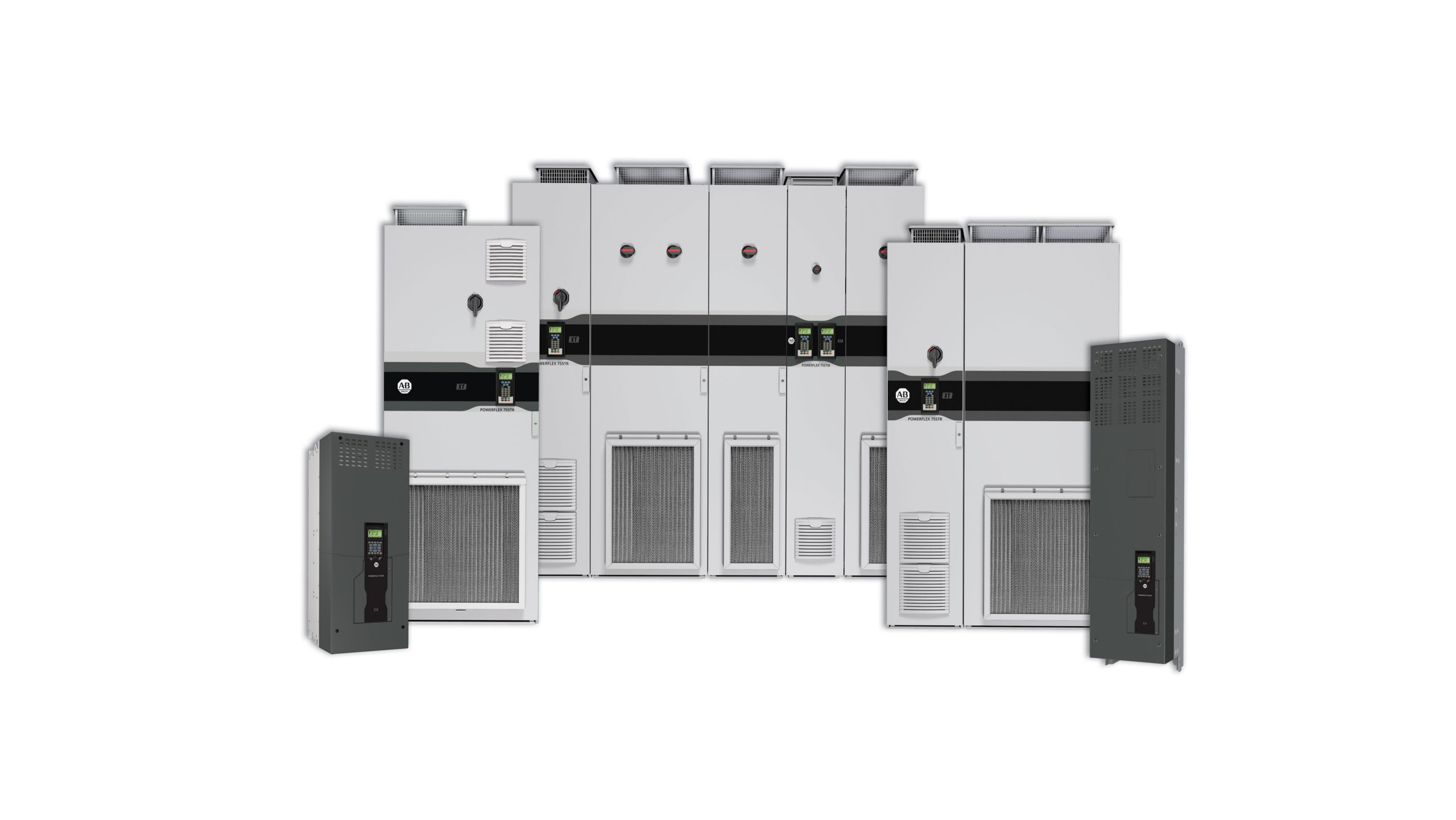

Allen-Bradley PowerFlex 755T VFD

Our PowerFlex^® 755T drives are designed to provide harmonic mitigation, regeneration, and common bus solutions that help reduce energy costs, add flexibility, and increase productivity. These are the first drives to offer TotalFORCE^® technology which uses several patented features to help optimize your system.

20G PowerFlex 755T | Overview

Overview

TotalFORCE^® technology is our patented field-oriented control that provides precise, adaptive control of velocity, torque, and position for electric motors. TotalForce technology allows the drives to respond quickly to operating conditions and automatically adjust to help improve system performance.

Provides predictive diagnostics and maintenance settings to monitor drive and motor operating conditions to help analyze system health
Offers optimized packaging of power components and options that reduce footprint and hardware
Provides harmonic mitigation and meets the IEEE 519 standard
Includes roll in/out design which makes the power and filter modules easy to install and service
Offers Safe Torque Off and Safe Speed Monitor safety options
Includes built-in dual EtherNet/IP ports
Manufactured with XT- corrosive gas protection and combine conformal coating with several additional design enhancements to provide improved performance in environments with corrosive gasses

PowerFlex 755TL Drives for Harmonic Mitigation

Offer power ratings of: 7.5…1400 kW / 10…1800 Hp in global voltages from 400…690V
Provide power factor correction and harmonic mitigation to meet the IEEE 519 standard

PowerFlex 755TM Drive Systems for Common Bus Solutions

Offer power ratings of: 160…4500 kW / 250…6000 Hp (AC) and 70…4800kW (DC) in global voltages from 400…690V
Provide power factor correction and harmonic mitigation to meet the IEEE 519 standard
Offer energy-efficient regenerative capability
Use a common bus drive system to gain design flexibility, reduce floor space, and lower installation costs
Enable coordination of multiple motors

PowerFlex 755TM VFDs Offer a Non-regenerative Bus Supply

The non-regenerative supply is a cost-effective solution for a common bus, when regenerative and low harmonics are not required.

Converts three-phase AC line voltage to DC
Compatible with PowerFlex 755TM Bus Supplies and Common Bus Inverters
Distributed DC Bus in modular Rittal cabinets
XT as standard

PowerFlex 755TR Drives for Regenerative Solutions

Offer power ratings of: 7.5…4500 kW / 10…6000 Hp in global voltages from 400…690V
Provide power factor correction and harmonic mitigation to meet the IEEE 519 standard
Offer energy-efficient regenerative capability

Available Safety Options

Hardwired Safe Torque Off is designed for safety-related applications that benefit from removal of rotational power from the drive. This functionality offers the benefit of quick startup after a demand on the safety system. SIL3, PLe, CAT 3
Safe Torque Off option is available as a networked or hardwired solution, both certified at SIL 3, PLe, Cat 3. This option removes rotational power to the motor without removing power from the drive for faster startup after a demand on the safety system.
Safe Speed Monitor option is certified at SIL 3, PLe, Cat 4. This option allows you to safely monitor and control the speed of your application. This allows operators to perform some process or maintenance work without stopping the machine.
The integrated safety functions option module provides advanced safety on an EtherNet/IP network. Safety instructions are based on IEC 61800-5-2 and include the ability to monitor speed, direction and position. When used as part of an integrated safety system that includes a GuardLogix^® 5580ES controller or Compact GuardLogix 5380ES controller, the integrated safety functions option module provides safety ratings up to and including SIL CL3 and PLe Cat 4. Studio 5000 Logix Designer^® application version 31 or later is also required.

Product Selection

Catalog Number	Description

20GE63C302LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 200kW (367A), ND – 160kW (302A), HD – 132kW (260A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20GE63C540LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 315kW (585A), ND – 315kW (540A), HD – 250kW (460A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20GE63D361LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 350HP (430A), ND – 300HP (361A), HD – 250HP (302A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE63D505LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 450HP (545A), ND – 400HP (505A), HD – 350HP (430A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE63E395LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 450HP (435A), ND – 400HP (395A), HD – 350HP (355A), 600 VAC, 3PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE64C367LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 250kW (460A), ND – 200kW (367A), HD – 160kW (302A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE64D430LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 400HP (485A), ND – 350HP (430A), HD – 300HP (361A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE64F370LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 400kW (415A), ND – 355kW (370A), HD – 315kW (330A), 690 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE6NC043LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 30kW (60A), ND – 22kW (43A), HD – 18.5kW (37A), 400 VAC, 3 PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GE6NC140LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 90kW (170A), ND – 75kW (140A), HD – 55kW (104A), 400 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20GE6ND014LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 15HP (22A), ND – 10HP (14A), HD – 7.5HP (11A), 480 VAC, 3 PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GE6ND040LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 40HP (52A), ND – 30HP (40A), HD – 25HP (34A), 480 VAC, 3 PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GE6ND096LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 75HP (96A), ND – 75HP (96A), HD – 60HP (77A), 480 VAC, 3 PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GE6NE011LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 15HP (17A), ND – 10HP (11A), HD – 7.5HP (9A), 600 VAC, 3PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GE6NE125LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 150HP (144A), ND – 125HP (125A), HD – 100HP (99A), 600 VAC, 3PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20GE6NF082LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Open Type/IP00; Wall Mount, LD – 90kW (98A), ND – 75kW (82A), HD – 55kW (61A), 690 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20GE73C302LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 200kW (367A), ND – 160kW (302A), HD – 132kW (260A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE73C540LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 315kW (585A), ND – 315kW (540A), HD – 250kW (460A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE73D505LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 450HP (545A), ND – 400HP (505A), HD – 350HP (430A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20GE73E242LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 300HP (295A), ND – 250HP (242A), HD – 200HP (192A), 600 VAC, 3PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE73F330LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 355kW (370A), ND – 315kW (330A), HD – 250kW (265A), 690 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE74C367LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 250kW (460A), ND – 200kW (367A), HD – 160kW (302A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE74C585LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 355kW (650A), ND – 315kW (585A), HD – 250kW (472A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE74D361LNDNNNNN-P51	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 350HP (430A), ND – 300HP (361A), HD – 250HP (302A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE74D617LNDNNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 600HP (710A), ND – 500HP (617A), HD – 400HP (485A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE74F370LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 400kW (415A), ND – 355kW (370A), HD – 315kW (330A), 690 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GE7NC060LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Open Type/IP00; Wall Mount, LD – 37kW (72A), ND – 30kW (60A), HD – 22kW (43A), 400 VAC, 3 PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GE7NC260LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Open Type/IP00; Wall Mount, LD – 160kW (302A), ND – 132kW (260A), HD – 110kW (205A), 400 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20GE7ND052LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Open Type/IP00; Wall Mount, LD – 50HP (65A), ND – 40HP (52A), HD – 30HP (40A), 480 VAC, 3 PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GE7ND248LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Open Type/IP00; Wall Mount, LD – 250HP (302A), ND – 200HP (248A), HD – 150HP (186A), 480 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20GE7NE125LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Open Type/IP00; Wall Mount, LD – 150HP (144A), ND – 125HP (125A), HD – 100HP (99A), 600 VAC, 3PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20GE7NF050LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Open Type/IP00; Wall Mount, LD – 55kW (61A), ND – 45kW (50A), HD – 37kW (46A), 690 VAC, 3 PH, Frame 5, Standard EMI Protection, No HIM & TotalFORCE Control
20GED3C1K0LNANNNNN-C11	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 630kW (1090A), ND – 560kW (1040A), HD – 500kW (920A), 400 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20GED3D1K0LNANNNNN-C0-C11	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1000HP (1135A), ND – 900HP (1045A), HD – 750HP (960A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20GED3D2K0LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2000HP (2240A), ND – 1800HP (2072A), HD – 1500HP (1655A), 480 VAC, 3 PH, Frame 10, Standard EMI Protection, No HIM & TotalFORCE Control
20GED3D361LNDNNNNN-C12	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 350HP (430A), ND – 300HP (361A), HD – 250HP (302A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GED3D617LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 600HP (710A), ND – 500HP (617A), HD – 400HP (485A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GED3D740LNDNNNNN-C12	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 700HP (800A), ND – 650HP (740A), HD – 500HP (617A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GED3D740MNDNNNNN-C11	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 700HP (800A), ND – 650HP (740A), HD – 500HP (617A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GED3E1K5MNANNNNN-C11-P46	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1600HP (1624A), ND – 1500HP (1430A), HD – 1250HP (1220A), 600 VAC, 3PH, Frame 10, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GED3E242MNANNNNN-C12-P46	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 300HP (295A), ND – 250HP (242A), HD – 200HP (192A), 600 VAC, 3PH, Frame 8, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GED3E2K4MNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2600HP (2668A), ND – 2500HP (2420A), HD – 2100HP (2070A), 600 VAC, 3PH, Frame 12, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GED3E545MNANNNNN-C12-P46	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 600HP (580A), ND – 550HP (545A), HD – 450HP (450A), 600 VAC, 3PH, Frame 8, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GED3E980MNANNNNN-P15	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1100HP (1102A), ND – 1000HP (980A), HD – 900HP (825A), 600 VAC, 3PH, Frame 9, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GED3F1K8MNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2000kW (2091A), ND – 1800kW (1865A), HD – 1500kW (1535A), 690 VAC, 3 PH, Frame 11, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GED3F370LNANNNNN-C11	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 400kW (415A), ND – 355kW (370A), HD – 315kW (330A), 690 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GED3F650LNANNNNN-C11	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 710kW (735A), ND – 630kW (650A), HD – 560kW (565A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20GED4C2K8LNANNNNN-C11	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 1800kW (3078A), ND – 1650kW (2849A), HD – 1400kW (2330A), 400 VAC, 3 PH, Frame 11, Standard EMI Protection, No HIM & TotalFORCE Control
20GED4D505LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 450HP (545A), ND – 400HP (505A), HD – 350HP (430A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GED4E2K4LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 2600HP (2668A), ND – 2500HP (2420A), HD – 2100HP (2070A), 600 VAC, 3PH, Frame 12, Standard EMI Protection, No HIM & TotalFORCE Control
20GED4F820MNDNNNNN-C11-P15	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, with DC Precharge (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 900kW (920A), ND – 800kW (820A), HD – 710kW (735A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEE3D1K0LNANNNNN-C0-C12	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1000HP (1135A), ND – 900HP (1045A), HD – 750HP (960A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20GEE3D302MNDNNNNN-C0-C11-P46	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 300HP (361A), ND – 250HP (302A), HD – 200HP (248A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEE3D505LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 450HP (545A), ND – 400HP (505A), HD – 350HP (430A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEE3D710MNDNNNNN-C11-P15	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 650HP (765A), ND – 600HP (710A), HD – 450HP (545A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEE3F1K1MNDNNNNN-C0-C11	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1250kW (1344A), ND – 1100kW (1150A), HD – 1000kW (1030A), 690 VAC, 3 PH, Frame 10, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEE3F2K3MNDNNNNN-C11-P15	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2500kW (2599A), ND – 2300kW (2318A), HD – 2000kW (2020A), 690 VAC, 3 PH, Frame 12, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEE3F650LNDNNNNN-C0-C11-P46	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 710kW (735A), ND – 630kW (650A), HD – 560kW (565A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEE3F920MNDNNNNN-C11-P46	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1000kW (1074A), ND – 900kW (920A), HD – 800kW (820A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEE4C367LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 250kW (460A), ND – 200kW (367A), HD – 160kW (302A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEE4C920LNANNNNN-C12	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 560kW (1040A), ND – 500kW (920A), HD – 400kW (770A), 400 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20GEE4E2K0LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 2100HP (2146A), ND – 2000HP (1946A), HD – 1800HP (1700A), 600 VAC, 3PH, Frame 11, Standard EMI Protection, No HIM & TotalFORCE Control
20GEE4F3K6LNDNNNNN-C0-C11-P60	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Common Bus Inverter, (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 4088kW (4125A), ND – 3650kW (3687A), HD – 2920kW (3030A), 690 VAC, 3 PH, Frame 14, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF3C1K0LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 630kW (1090A), ND – 560kW (1040A), HD – 500kW (920A), 400 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20GEF3C367LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 250kW (460A), ND – 200kW (367A), HD – 160kW (302A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF3D2K6LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 2600HP (2960A), ND – 2400HP (2738A), HD – 2000HP (2240A), 480 VAC, 3 PH, Frame 11, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF3D617LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 600HP (710A), ND – 500HP (617A), HD – 400HP (485A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEF3D960LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 900HP (1045A), ND – 800HP (960A), HD – 700HP (800A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF3F1K4LNDNNNNN-P15-P16-P50	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 1500kW (1582A), ND – 1400kW (1419A), HD – 1100kW (1162A), 690 VAC, 3 PH, Frame 10, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF3F735LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 1/IP21, Floor Mount, LD – 800kW (820A), ND – 710kW (735A), HD – 630kW (650A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF4C1K6LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 1000kW (1715A), ND – 850kW (1590A), HD – 710kW (1465A), 400 VAC, 3 PH, Frame 10, Standard EMI Protection, No HIM & TotalFORCE Control
20GEF4C460LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 315kW (540A), ND – 250kW (460A), HD – 200kW (367A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF4C770LNANNNNN-P15-P17	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 450kW (832A), ND – 400kW (770A), HD – 355kW (650A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEF4D361LNANNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 350HP (430A), ND – 300HP (361A), HD – 250HP (302A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEF4E545LNDNNNNN-C0	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 600HP (580A), ND – 550HP (545A), HD – 450HP (450A), 600 VAC, 3PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEF4F415LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Drive (PowerFlex 755TR), Type 12/IP54, Floor Mount, LD – 450kW (460A), ND – 400kW (415A), HD – 355kW (370A), 690 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG3C1K4KNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 850kW (1581A), ND – 800kW (1465A), HD – 630kW (1175A), 400 VAC, 3 PH, Frame 9, Auxiliary EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG3C460LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 315kW (540A), ND – 250kW (460A), HD – 200kW (367A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEG3C750MNDNNNNN-P50	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 450kW (796A), ND – 400kW (750A), HD – 315kW (585A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG3D1K1MNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 1100HP (1365A), ND – 1000HP (1135A), HD – 800HP (1045A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GEG3D430LNANNNNN-P15-P17	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 400HP (485A), ND – 350HP (430A), HD – 300HP (361A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEG3D710LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 650HP (765A), ND – 600HP (710A), HD – 450HP (545A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG3E355MNDNNNNN-P15	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 400HP (395A), ND – 350HP (355A), HD – 300HP (295A), 600 VAC, 3PH, Frame 8, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG3F265LNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 315kW (330A), ND – 250kW (265A), HD – 200kW (215A), 690 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEG3F820MNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD – 900kW (920A), ND – 800kW (820A), HD – 710kW (735A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, No HIM & TotalFORCE Control
20GEG4C540JNANNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 315kW (585A), ND – 315kW (540A), HD – 250kW (460A), 400 VAC, 3 PH, Frame 8, Auxiliary EMI Protection, No HIM & TotalFORCE Control
20GEG4C770LNANNNNN-P15	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 450kW (832A), ND – 400kW (770A), HD – 355kW (650A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20GEG4D1K4LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 1500HP (1655A), ND – 1250HP (1420A), HD – 1000HP (1365A), 480 VAC, 3 PH, Frame 10, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG4D545LNDNNNNN-P17	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 500HP (617A), ND – 450HP (545A), HD – 350HP (454A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG4E1K5MNDNNNNN-P50	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 1600HP (1624A), ND – 1500HP (1430A), HD – 1250HP (1220A), 600 VAC, 3PH, Frame 10, Standard EMI Protection & Reflected Wave (dV/dT) Filtering, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20GEG4F505LNDNNNNN	PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic, AFE Drive (PowerFlex 755TL), Type 12/IP54, Floor Mount, LD – 560kW (565A), ND – 500kW (505A), HD – 400kW (415A), 690 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63C302LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 228kW (394A), ND – 188kW (324A), HD – 162kW (279A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20JE63C367LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 286kW (494A), ND – 228kW (394A), HD – 188kW (324A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20JE63C367LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 286kW (494A), ND – 228kW (394A), HD – 188kW (324A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63C460LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 336kW (579A), ND – 286kW (494A), HD – 228kW (394A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63C540LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 364kW (628A), ND – 336kW (579A), HD – 286kW (494A), 400 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63D302LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 258kW (371A), ND – 216kW (311A), HD – 177kW (255A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20JE63D302LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 258kW (371A), ND – 216kW (311A), HD – 177kW (255A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63D361LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 307kW (442A), ND – 258kW (371A), HD – 216kW (311A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20JE63D361LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 307kW (442A), ND – 258kW (371A), HD – 216kW (311A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63D430LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 347kW (499A), ND – 307kW (442A), HD – 258kW (371A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63D505LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 390kW (560A), ND – 361kW (519A), HD – 307kW (442A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20JE63D617LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 508kW (730A), ND – 442kW (635A), HD – 347kW (499A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63E242LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 263kW (303A), ND – 217kW (249A), HD – 171kW (197A), 600 VAC, 3PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63E355LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 353kW (406A), ND – 317kW (365A), HD – 263kW (303A), 600 VAC, 3PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63E395LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 389kW (447A), ND – 353kW (406A), HD – 317kW (365A), 600 VAC, 3PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE63F370LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 426kW (426A), ND – 380kW (380A), HD – 339kW (339A), 690 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20JE63F370LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 426kW (426A), ND – 380kW (380A), HD – 339kW (339A), 690 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE64D302LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 258kW (371A), ND – 216kW (311A), HD – 177kW (255A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE64D361LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 307kW (442A), ND – 258kW (371A), HD – 216kW (311A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, No HIM & TotalFORCE Control
20JE64D361LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 307kW (442A), ND – 258kW (371A), HD – 216kW (311A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE64D430LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 347kW (499A), ND – 307kW (442A), HD – 258kW (371A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE64D617LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 508kW (730A), ND – 442kW (635A), HD – 347kW (499A), 480 VAC, 3 PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE64E395LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 389kW (447A), ND – 353kW (406A), HD – 317kW (365A), 600 VAC, 3PH, Frame 7, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JE6NC140LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 106kW (182A), ND – 87kW (150A), HD – 65kW (112A), 400 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NC176LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 128kW (220A), ND – 106kW (182A), HD – 87kW (150A), 400 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NC205LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 162kW (279A), ND – 128kW (220A), HD – 106kW (182A), 400 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NC260LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 188kW (324A), ND – 162kW (279A), HD – 128kW (220A), 400 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6ND125LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 111kW (160A), ND – 90kW (129A), HD – 69kW (99A), 480 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6ND156LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 133kW (191A), ND – 111kW (160A), HD – 90kW (129A), 480 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6ND186LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 177kW (255A), ND – 133kW (191A), HD – 111kW (160A), 480 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6ND248LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 216kW (311A), ND – 177kW (255A), HD – 133kW (191A), 480 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NE077LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 89kW (102A), ND – 69kW (79A), HD – 56kW (64A), 600 VAC, 3PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NE144LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 171kW (197A), ND – 129kW (148A), HD – 112kW (129A), 600 VAC, 3PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NF082LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 101kW (101A), ND – 84kW (84A), HD – 63kW (63A), 690 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NF098LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 122kW (122A), ND – 101kW (101A), HD – 84kW (84A), 690 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JE6NF142LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenrative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Open Type/IP00; Wall Mount, LD – 176kW (176A), ND – 146kW (146A), HD – 122kW (122A), 690 VAC, 3 PH, Frame 6, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF3C1K0LNANNNNN-C1-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 678kW (1170A), ND – 647kW (1116A), HD – 572kW (987A), 400 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF3C1K4LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 983kW (1696A), ND – 910kW (1570A), HD – 731kW (1261A), 400 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF3C367LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 286kW (494A), ND – 228kW (394A), HD – 188kW (324A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF3C540LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 364kW (628A), ND – 336kW (579A), HD – 286kW (494A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3C650LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 467kW (805A), ND – 405kW (698A), HD – 336kW (579A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3C770LNANNNNN-C1-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 518kW (893A), ND – 479kW (826A), HD – 405kW (698A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF3D1K0LNANNNNN-C1-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 802kW (1153A), ND – 748kW (1075A), HD – 687kW (987A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF3D1K1JNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 977kW (1404A), ND – 812kW (1167A), HD – 748kW (1075A), 480 VAC, 3 PH, Frame 9, Auxiliary EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D1K1LNDNNNNN-C1-P46-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 977kW (1404A), ND – 812kW (1167A), HD – 748kW (1075A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D1K3LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D1K3LNDNNNNN-C1-P17-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D2K0LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1603kW (2304A), ND – 1483kW (2131A), HD – 1184kW (1702A), 480 VAC, 3 PH, Frame 10, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D2K0LNDNNNNN-C1-P46-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1603kW (2304A), ND – 1483kW (2131A), HD – 1184kW (1702A), 480 VAC, 3 PH, Frame 10, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D2K6LNDNNNNN-C1-P16	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2118kW (3044A), ND – 1959kW (2816A), HD – 1603kW (2304A), 480 VAC, 3 PH, Frame 11, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D302LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 258kW (371A), ND – 216kW (311A), HD – 177kW (255A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D3K4LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2632kW (3784A), ND – 2436kW (3501A), HD – 2132kW (3065A), 480 VAC, 3 PH, Frame 12, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D430LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 347kW (499A), ND – 307kW (442A), HD – 258kW (371A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D617JNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 508kW (730A), ND – 442kW (635A), HD – 347kW (499A), 480 VAC, 3 PH, Frame 8, Auxiliary EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D710LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 529kW (761A), ND – 508kW (730A), HD – 390kW (560A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D740JNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 573kW (823A), ND – 529kW (761A), HD – 442kW (635A), 480 VAC, 3 PH, Frame 8, Auxiliary EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D740LNDNNNNN-C1-P17-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 573kW (823A), ND – 529kW (761A), HD – 442kW (635A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3D960LNDNNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 748kW (1075A), ND – 687kW (987A), HD – 573kW (823A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3E1K5LNDNNNNN-C1-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1452kW (1670A), ND – 1279kW (1471A), HD – 1091kW (1255A), 600 VAC, 3PH, Frame 10, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3E2K4JNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2386kW (2744A), ND – 2164kW (2489A), HD – 1851kW (2129A), 600 VAC, 3PH, Frame 12, Auxiliary EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3E2K4LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2386kW (2744A), ND – 2164kW (2489A), HD – 1851kW (2129A), 600 VAC, 3PH, Frame 12, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3E2K9LNDNNNNN-C1-P50-P60	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 2851kW (3278A), ND – 2678kW (3080A), HD – 2215kW (2547A), 600 VAC, 3PH, Frame 13, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3E545LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 518kW (596A), ND – 487kW (560A), HD – 403kW (463A), 600 VAC, 3PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3F1K0LNANNNNN	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1180kW (1180A), ND – 1057kW (1057A), HD – 944kW (944A), 690 VAC, 3 PH, Frame 10, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF3F1K4LNDNNNNN-C1-P46	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 1624kW (1624A), ND – 1456kW (1456A), HD – 1193kW (1193A), 690 VAC, 3 PH, Frame 10, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3F2K7JNDNNNNN-C1-P16	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 3190kW (3190A), ND – 2849kW (2849A), HD – 2343kW (2343A), 690 VAC, 3 PH, Frame 13, Auxiliary EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF3F820LNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 1/IP21, Floor Mount, LD – 944kW (944A), ND – 842kW (842A), HD – 754kW (754A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4C2K1LNANNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 1449kW (2500A), ND – 1342kW (2314A), HD – 1067kW (1840A), 400 VAC, 3 PH, Frame 10, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF4C367LNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 286kW (494A), ND – 228kW (394A), HD – 188kW (324A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4C770LNDNNNNN-C1-P46	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 518kW (893A), ND – 479kW (826A), HD – 405kW (698A), 400 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4D1K3LNANNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF4D2K0JNDNNNNN-C1-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 1603kW (2304A), ND – 1483kW (2131A), HD – 1184kW (1702A), 480 VAC, 3 PH, Frame 10, Auxiliary EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4D2K6LNDNNNNN-C1-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 2118kW (3044A), ND – 1959kW (2816A), HD – 1603kW (2304A), 480 VAC, 3 PH, Frame 11, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4D617LNANNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 508kW (730A), ND – 442kW (635A), HD – 347kW (499A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, No HIM & TotalFORCE Control
20JEF4D740LNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 573kW (823A), ND – 529kW (761A), HD – 442kW (635A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4E1K5LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 1452kW (1670A), ND – 1279kW (1471A), HD – 1091kW (1255A), 600 VAC, 3PH, Frame 10, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4E545LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 518kW (596A), ND – 487kW (560A), HD – 403kW (463A), 600 VAC, 3PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4E980LNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 985kW (1133A), ND – 877kW (1008A), HD – 737kW (848A), 600 VAC, 3PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4F1K8LNDNNNNN-C1	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 2146kW (2146A), ND – 1914kW (1914A), HD – 1576kW (1576A), 690 VAC, 3 PH, Frame 11, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEF4F820LNDNNNNN-C1-P17	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Regenerative and Low Harmonic, AFE Bus Supply (PowerFlex 755TM), Type 12/IP54, Floor Mount, LD – 944kW (944A), ND – 842kW (842A), HD – 754kW (754A), 690 VAC, 3 PH, Frame 9, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control
20JEH3C1K4LNANNNNN-C1-P18	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 983kW (1696A), ND – 910kW (1570A), HD – 731kW (1261A), 400 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3C1K4LNANNNNN-C2-P18	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 983kW (1696A), ND – 910kW (1570A), HD – 731kW (1261A), 400 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3C770LNANNNNN-C1-P18-P46-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 518kW (893A), ND – 479kW (826A), HD – 405kW (698A), 400 VAC, 3 PH, Frame 8, None, HIM not required
20JEH3C770LNANNNNN-C2-P46	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 518kW (893A), ND – 479kW (826A), HD – 405kW (698A), 400 VAC, 3 PH, Frame 8, None, HIM not required
20JEH3D1K3LNANNNNN-C1-P18-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3D1K3LNANNNNN-C1-P50-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3D1K3LNANNNNN-C2	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3D1K3LNANNNNN-C2-P18	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3D1K3LNANNNNN-C2-P18-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3D1K3LNANNNNN-C2-P46-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3D1K3LNANNNNN-C2-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3D740LNANNNNN-C2	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 573kW (823A), ND – 529kW (761A), HD – 442kW (635A), 480 VAC, 3 PH, Frame 8, None, HIM not required
20JEH3D740LNANNNNN-C2-P18-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 573kW (823A), ND – 529kW (761A), HD – 442kW (635A), 480 VAC, 3 PH, Frame 8, None, HIM not required
20JEH3E980LNANNNNN-C1-P18-P46-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 985kW (1133A), ND – 877kW (1008A), HD – 737kW (848A), 600 VAC, 3PH, Frame 9, None, HIM not required
20JEH3E980LNANNNNN-C1-P46-P50-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 985kW (1133A), ND – 877kW (1008A), HD – 737kW (848A), 600 VAC, 3PH, Frame 9, None, HIM not required
20JEH3E980LNANNNNN-C1-P47-P50-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 985kW (1133A), ND – 877kW (1008A), HD – 737kW (848A), 600 VAC, 3PH, Frame 9, None, HIM not required
20JEH3E980LNANNNNN-C2-P46	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 985kW (1133A), ND – 877kW (1008A), HD – 737kW (848A), 600 VAC, 3PH, Frame 9, None, HIM not required
20JEH3E980LNANNNNN-C2-P47-P50-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 985kW (1133A), ND – 877kW (1008A), HD – 737kW (848A), 600 VAC, 3PH, Frame 9, None, HIM not required
20JEH3F505LNANNNNN-C2	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 580kW (580A), ND – 518kW (518A), HD – 426kW (426A), 690 VAC, 3 PH, Frame 8, None, HIM not required
20JEH3F505LNANNNNN-C2-P18	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 580kW (580A), ND – 518kW (518A), HD – 426kW (426A), 690 VAC, 3 PH, Frame 8, None, HIM not required
20JEH3F920LNANNNNN-C1-P18-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1102kW (1102A), ND – 944kW (944A), HD – 842kW (842A), 690 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3F920LNANNNNN-C1-P47-P50-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1102kW (1102A), ND – 944kW (944A), HD – 842kW (842A), 690 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3F920LNANNNNN-C1-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1102kW (1102A), ND – 944kW (944A), HD – 842kW (842A), 690 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3F920LNANNNNN-C2-P18-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1102kW (1102A), ND – 944kW (944A), HD – 842kW (842A), 690 VAC, 3 PH, Frame 9, None, HIM not required
20JEH3F920LNANNNNN-C2-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 1/IP21, Floor Mount, LD – 1102kW (1102A), ND – 944kW (944A), HD – 842kW (842A), 690 VAC, 3 PH, Frame 9, None, HIM not required
20JEH4C770LNANNNNN-C1-P50-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 12/IP54, Floor Mount, LD – 518kW (893A), ND – 479kW (826A), HD – 405kW (698A), 400 VAC, 3 PH, Frame 8, None, HIM not required
20JEH4D1K3LNANNNNN-C2-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 12/IP54, Floor Mount, LD – 1087kW (1563A), ND – 977kW (1404A), HD – 812kW (1167A), 480 VAC, 3 PH, Frame 9, None, HIM not required
20JEH4D740LNANNNNN-C1-P18-P50-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 12/IP54, Floor Mount, LD – 573kW (823A), ND – 529kW (761A), HD – 442kW (635A), 480 VAC, 3 PH, Frame 8, None, HIM not required
20JEH4D740LNANNNNN-C2-P18-P47-P51-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 12/IP54, Floor Mount, LD – 573kW (823A), ND – 529kW (761A), HD – 442kW (635A), 480 VAC, 3 PH, Frame 8, None, HIM not required
20JEH4E980LNANNNNN-C1-P18-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 12/IP54, Floor Mount, LD – 985kW (1133A), ND – 877kW (1008A), HD – 737kW (848A), 600 VAC, 3PH, Frame 9, None, HIM not required
20JEH4F505LNANNNNN-C1-P72	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 12/IP54, Floor Mount, LD – 580kW (580A), ND – 518kW (518A), HD – 426kW (426A), 690 VAC, 3 PH, Frame 8, None, HIM not required
20JEH4F920LNANNNNN-C1-P18-P50	PowerFlex 755T Bus Supplies, Corrosive Gas Protection (XT), Forced Air, Non-Regenerative, 755TM Bus Supply, Type 12/IP54, Floor Mount, LD – 1102kW (1102A), ND – 944kW (944A), HD – 842kW (842A), 690 VAC, 3 PH, Frame 9, None, HIM not required

Allen-Bradley PowerFlex 755T VFD

Overview

Product Selection

Happy to Help
