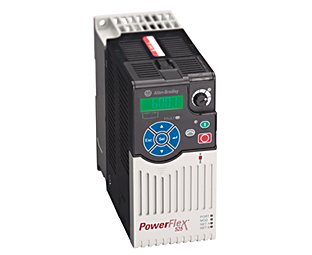

Allen-Bradley PowerFlex 525 AC Drives

PowerFlex 525 AC Drives

Our PowerFlex® 525 AC Drives feature an innovative, modular design to support fast and easy installation and configuration. This next generation of compact drives offers embedded EtherNet/IP™ communications, USB programming, and standard safety features. PowerFlex 525 drives, which offer a power rating of 0.4…22 kW (0.5…30 Hp) with global voltage classes of 100…600V, provide a variety of motor control and flexible mounting options. PowerFlex 525 AC drives operate at temperatures as high as 70 °C (158 °F), and they are ideal for applications such as conveyors, fans, pumps, and mixers.

25B PowerFlex 525 |  Overview

Overview

  • Power ratings of 0.4…22 kW / 0.5…30 Hp in global voltages from 100…600V
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
  • Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
  • Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
  • Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
  • Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
  • Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.

Product Selection

Catalog Number Description
25B-A011N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-A011N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-A2P5N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-A2P5N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-A4P8N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-A4P8N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-A8P0N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 8 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-A8P0N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 1 Phase, 8 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-B011N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B017N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 17.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-B024N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 24 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-B032N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 32 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-B048N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 48.3 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-B062N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 62.1 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-B2P5N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B5P0N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 5.0 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B8P0N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200…240V AC, 3 Phase, 8.0 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D010N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 10.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-D010N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 10.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-D013N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 13 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-D013N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 13 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25B-D017N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 17 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-D017N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 17 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25B-D024N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 24 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-D024N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 24 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25B-D030N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 30 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-D030N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 30 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25B-D037N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 37 Amps, 25 Hp, 18.5 kW Normal Duty; 20 Hp, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25B-D043N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 43 Amps, 30 Hp, 22 kW Normal Duty; 25 Hp, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25B-D1P4N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 1.4 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D1P4N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 1.4 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D2P3N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 2.3 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D2P3N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 2.3 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D4P0N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D4P0N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D6P0N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 6 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D6P0N114PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 6 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-E012N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 12 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-E019N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 19 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-E022N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 22 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-E027N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 27 Amps, 25 Hp, 18.5 kW Normal Duty; 20 Hp, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-E032N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 32 Amps, 30 Hp, 22 kW Normal Duty; 25 Hp, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-E0P9N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 0.9 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E1P7N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 1.7 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E3P0N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 3 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E4P2N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 4.2 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E6P6N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 6.6 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-E9P9N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525…600V AC, 3 Phase, 9.9 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-V2P5N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 100…120V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-V4P8N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 100…120V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-V6P0N104PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 100…120V AC, 1 Phase, 6 Amps, 1.5 Hp, 1.1 kW Normal Duty; 1.5 Hp, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
