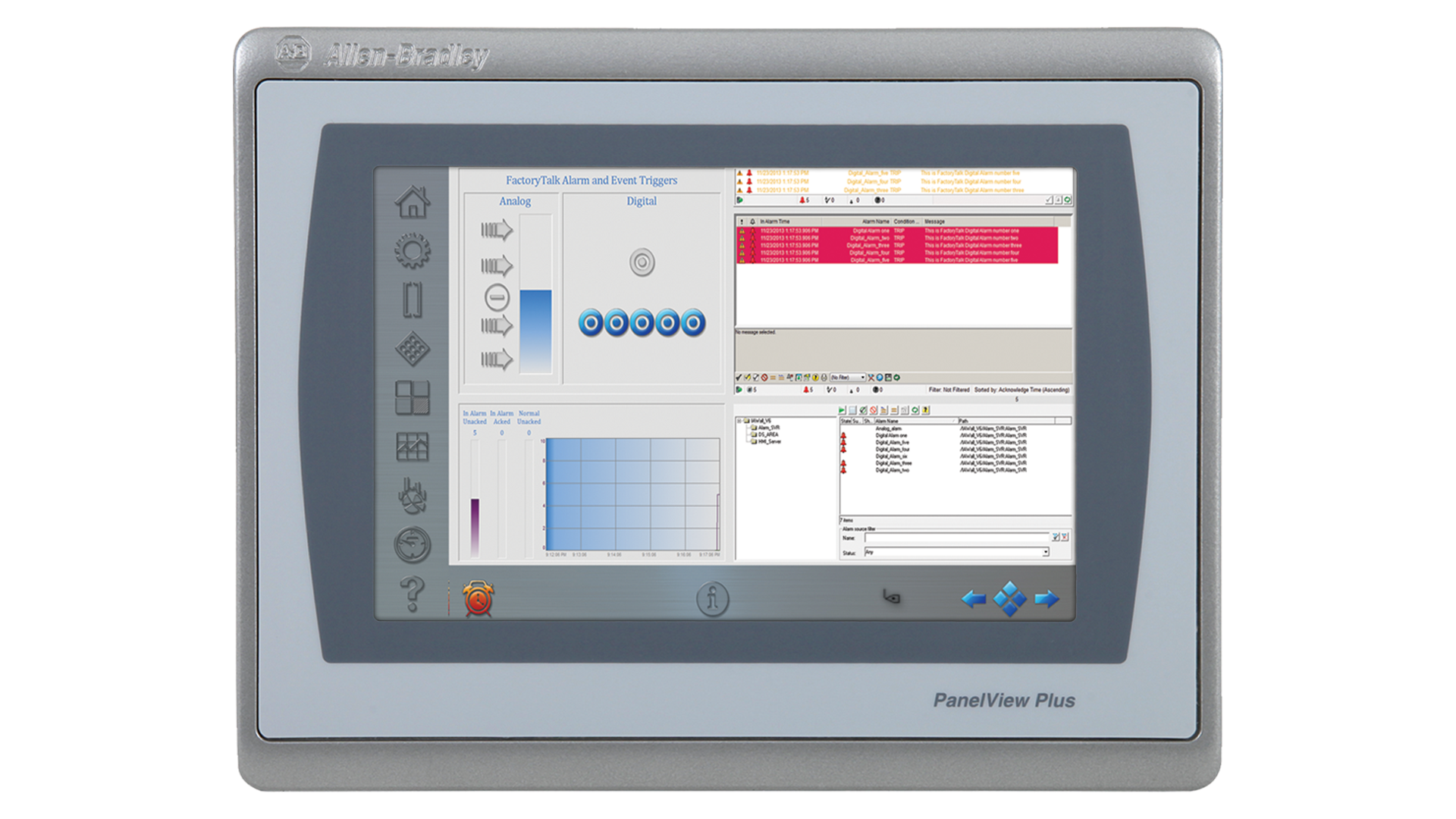

PanelView Plus 7

Our Bulletin 2711P PanelView™ Plus 7 Graphic Terminals are available in standard and performance versions. Our performance versions are available in conformal coat, stainless steel and on-machine (ArmorView™ Plus 7) options, offering flexibility to meet your specific needs. You can use FactoryTalk® View Machine Edition to build your application, help simplify configuration and strengthen your Integrated Architecture® solution. These terminals include Ethernet connectivity and enable you to monitor applications from remote locations with VNC and FactoryTalk ViewPoint connectivity.

PanelView Plus 7 |  Overview

Overview

PanelView Plus 7 Standard

  • Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
  • Offers display sizes from 4…15 in. with wide screen and keypad options
  • Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
  • Uses an SD card or USB drive to quickly copy and restore the operator interface
  • Includes email and texting notification capabilities
  • Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
  • Offers 100 screens and 500 alarms when used with FactoryTalk Machine Edition software with connection to one controller
  • Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
  • Features single or DLR Ethernet ports for network connectivity
  • Includes option for Allen‑Bradley® branded and brandless terminals

PanelView Plus 7 Performance

  • Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics
  • Offers display sizes from 7…19 in. with wide screen and keypad options
  • Includes video playback support, which provides advanced user help capabilities
  • Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
  • Uses an SD card or USB drive to quickly copy and restore the operator interface
  • Includes email and texting notification capabilities
  • Includes 4GB RAM and 20GB nonvolatile memory (approximately 2GB free user memory)
  • Features two Ethernet ports that support DLR, linear, or star network topologies
  • Includes option for Allen‑Bradley branded and brandless terminals

Conformally Coated Version

  • Available on all touch-only displays and 15 in. Keypad display
  • Severity Level GX per ANSI/ISA 71.04-2013

Stainless Steel Version

  • Offers brandless display in 9 in. and 12 in. sizes
  • Features stainless steel 304 bezel
  • Includes replaceable blue food-grade silicone gasket
  • Includes conformal coating
  • Features NSF certification
  • UL IP69 rated and tested to IP69K according to ISO 20653

ArmorView Plus 7 Version

  • Offers 12 in. display size in a fully enclosed panel
  • Features IP66 protection for a cabinet-free HMI solution
  • Offers sixteen standard button plate configurations
  • Includes option to individually customize buttons and switches
  • Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface

Product Selection

Catalog Number Description
2711P-T10C21D8SPanelView Plus 7 Standard Terminal, Touch Screen, 10.4 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T10C21D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 10.4 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T4W21D8SPanelView Plus 7 Standard Terminal, Touch Screen, 4.3 inches, Wide aspect ratio Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T4W21D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 4.3 inches, Wide aspect ratio Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T6C21D8SPanelView Plus 7 Standard Terminal, Touch Screen, 5.7 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T6C21D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 5.7 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T7C21D8SPanelView Plus 7 Standard Terminal, Touch Screen, 6.5 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T7C21D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 6.5 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T9W21D8SPanelView Plus 7 Standard Terminal, Touch Screen, 9 inches, Wide aspect ratio Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T9W21D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 9 inches, Wide aspect ratio Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T12W21D8SPanelView Plus 7 Standard Terminal, Touch Screen, 12.1 inches, Wide aspect ratio Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T12W21D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 12.1 inches, Wide aspect ratio Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T15C21D8SPanelView Plus 7 Standard Terminal, Touch Screen, 15 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T15C21D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 15 inches, TFT Color, Single Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T4W22D8SPanelView Plus 7 Standard Terminal, Touch Screen, 4.3 inches, Wide aspect ratio Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T4W22D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 4.3 inches, Wide aspect ratio Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T6C22D8SPanelView Plus 7 Standard Terminal, Touch Screen, 5.7 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T6C22D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 5.7 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T7C22D8SPanelView Plus 7 Standard Terminal, Touch Screen, 6.5 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T7C22D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 6.5 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T9W22D8SPanelView Plus 7 Standard Terminal, Touch Screen, 9 inches, Wide aspect ratio Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T9W22D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 9 inches, Wide aspect ratio Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T10C22D8SPanelView Plus 7 Standard Terminal, Touch Screen, 10.4 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T10C22D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 10.4 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T12W22D8SPanelView Plus 7 Standard Terminal, Touch Screen, 12.1 inches, Wide aspect ratio Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T12W22D8S-BPanelView Plus 7 Standard Terminal, Touch Screen, 12.1 inches, Wide aspect ratio Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless
2711P-T15C22D8SPanelView Plus 7 Standard Terminal, Touch Screen, 15 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model
2711P-T15C22D8S-B

PanelView Plus 7 Standard Terminal, Touch Screen, 15 inches, TFT Color, DLR Ethernet, 24V DC, Windows CE 6 , Standard Model, Brandless

2711P-T12W22D9PKPanelView Plus 7 Performance Terminal, Touch Screen, 12 WXGA, Wide aspect ration Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Conformally coated
2711P-T9W22D9PKPanelView Plus 7 Performance Terminal, Touch Screen, 9 WVGA, Wide aspect ration Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Conformally coated
2711P-T7C22D9PPanelView Plus 7 Performance Terminal, Touch Screen, 7 VGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-T7C22D9PKPanelView Plus 7 Performance Terminal, Touch Screen, 7 VGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Conformally coated
2711P-T7C22D9P-BPanelView Plus 7 Performance Terminal, Touch Screen, 7 VGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-T9W22D9PPanelView Plus 7 Performance Terminal, Touch Screen, 9 WVGA, Wide aspect ration Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-T9W22D9P-BPanelView Plus 7 Performance Terminal, Touch Screen, 9 WVGA, Wide aspect ration Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-T10C22D9PPanelView Plus 7 Performance Terminal, Touch Screen,10 SVGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-T10C22D9PKPanelView Plus 7 Performance Terminal, Touch Screen,10 SVGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Conformally coated
2711P-T10C22D9P-BPanelView Plus 7 Performance Terminal, Touch Screen,10 SVGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-T12W22D9PPanelView Plus 7 Performance Terminal, Touch Screen, 12 WXGA, Wide aspect ration Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-T12W22D9P-BPanelView Plus 7 Performance Terminal, Touch Screen, 12 WXGA, Wide aspect ration Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-T15C22D9PPanelView Plus 7 Performance Terminal, Touch Screen, 15 XGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-T15C22D9PKPanelView Plus 7 Performance Terminal, Touch Screen, 15 XGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Conformally coated
2711P-T15C22D9P-BPanelView Plus 7 Performance Terminal, Touch Screen, 15 XGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-T19C22D9PPanelView Plus 7 Performance Terminal, Touch Screen, 19 SXGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-T19C22D9PKPanelView Plus 7 Performance Terminal, Touch Screen, 19 SXGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Conformally coated
2711P-T19C22D9P-BPanelView Plus 7 Performance Terminal, Touch Screen, 19 SXGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-B7C22D9PPanelView Plus 7 Performance Terminal, Keypad/TouchScreen, 7 VGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-B7C22D9P-BPanelView Plus 7 Performance Terminal, Keypad/TouchScreen, 7 VGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-B10C22D9PPanelView Plus 7 Performance Terminal, Keypad/TouchScreen,10 SVGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-B10C22D9P-BPanelView Plus 7 Performance Terminal, Keypad/TouchScreen,10 SVGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-B15C22D9PPanelView Plus 7 Performance Terminal, Keypad/TouchScreen, 15 XGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-B15C22D9PKPanelView Plus 7 Performance Terminal, Keypad/TouchScreen, 15 XGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Conformally coated
2711P-B15C22D9P-BPanelView Plus 7 Performance Terminal, Keypad/TouchScreen, 15 XGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, Brandless
2711P-T12W22D9P-BSHKPanelView Plus 7 Performance Stainless Steel Terminals, Touch Screen, 12 WXGA, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
2711P-T12W22D9P-BM0012711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, Brandless7 Blank positions with provision of Ethernet IO
2711P-T12W22D9P-BM0022711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessEthernet IO with 7 Blank positions
2711P-T12W22D9P-BM0032711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessESTOP w/ Legend Button and provision of Ethernet IO and 6 Blank Positions
2711P-T12W22D9P-BM0042711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessESTOP w/ Legend Button with Ethernet IO and 6 Blank Positions
2711P-T12W22D9P-BM0052711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessMomentary Push Button’s at Position 2 and 3, and ESTOP w/ Legend Button at Position 6 with Ethernet IO and 4 Blank Positions
2711P-T12W22D9P-BM0062711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, Brandless2 Position Selector switch at Position 0, Momentary Push Button’s at Position 2 and 3, and ESTOP w/ Legend Button at Position 6 with Ethernet IO and 3 Blank Positions
2711P-T12W22D9P-BM0072711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, Brandless3 Position Selector switch at Position 0, Momentary Push Button’s at Position 2 and 3, and ESTOP w/ Legend Button at Position 6 with Ethernet IO and 3 Blank Positions
2711P-T12W22D9P-BM0082711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessKey Selector switch at Position 0, Momentary Push Button’s at Position 2 and 3, and ESTOP w/ Legend Button at Position 6 with Ethernet IO and 3 Blank Positions
2711P-T12W22D9P-BM0092711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessMomentary Push Button’s at Position 2 ,3 and 4, and ESTOP w/ Legend Button at Position 6 with Ethernet IO and 3 Blank Positions
2711P-T12W22D9P-BM0102711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, Brandless2 Position Selector switch at Position 0, Momentary Push Button’s at Position 2 ,3 and 4, and ESTOP w/ Legend Button at Position 6 with Ethernet IO and 2 Blank Positions
2711P-T12W22D9P-BM0112711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, Brandless3 Position Selector switch at Position 0, Momentary Push Button’s at Position 2 ,3 and 4, and ESTOP w/ Legend Button at Position 7 with Ethernet IO and 2 Blank Positions
2711P-T12W22D9P-BM0122711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessKey Selector switch at Position 0, Momentary Push Button’s at Position 2 ,3 and 4, and ESTOP w/ Legend Button at Position 6 with Ethernet IO and 2 Blank Positions
2711P-T12W22D9P-BM0132711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessMomentary Push Button’s at Position 0, 1, 2 ,3 ,4 and 5, and ESTOP w/ Legend Button at Position 6 with Ethernet IO
2711P-T12W22D9P-BM0142711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, Brandless2 Position Selector switch at Position 0, Momentary Push Button’s at Position 1, 2, 3, 4 and 5, and ESTOP w/ Legend Button at Position 6 with Ethernet IO
2711P-T12W22D9P-BM0152711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, Brandless3 Position Selector switch at Position 0, Momentary Push Button’s at Position 1, 2, 3, 4 and 5, and ESTOP w/ Legend Button at Position 6 with Ethernet IO
2711P-T12W22D9P-BM0162711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model, On-Machine, BrandlessKey Selector switch at Position 0, Momentary Push Button’s at Position 1, 2, 3, 4 and 5, and ESTOP w/ Legend Button at Position 6 with Ethernet IO
2711P-RVESA01Accessory for VESA mounting the ArmorView. Includes bulkhead connectors to provide an IP66/NEMA4/12/13 enclosure rating
2711P-RHNDL01Handle accessory, for repositioning ArmorView. Attached on the bottom or each side (requires two kits)
2711P-RIOIN3MArmorView accessory cable for adding IO to 1732E. Pico Cable,Male, Straight, No Connector, PVC, Yellow, UnShld, 24AWG, 0.3 m
2711P-RIOUT3MArmorView accessory cable for output from 1732E. Pico Cable,Male, Straight, No Connector, PVC, Yellow, UnShld, 24AWG, 0.3 m
2711P-RCKSStandard Model, SD Covers
2711P-RGT6SProtective Overlay, PanelView Plus 7,5.7 in., Touch screen (Sold as pack of 3)
2711P-RMCSStandard Model, Mounting Levers
2711P-RYKSStandard Model, Battery Covers
2711P-RGT7SPProtective Overlay, PanelView Plus 7,6.5 in., Touch screen (Sold as pack of 3)
2711P-RGT9SPProtective Overlay, PanelView Plus 7, 9 in. Wide Display, Touch screen (Sold as pack of 3)
2711P-RGT10SPProtective Overlay, PanelView Plus 7,10 in., Touch screen (Sold as pack of 3)
2711P-RTBDSPDC Terminal Blocks
2711P-RGST12WBHygienic replacement gasket, blue silicon gasket for 12-in. stainless steel terminal series B
2711P-RGST9WBHygienic replacement gasket, blue silicon gasket for 9-in. stainless steel terminal series B.
2711P-RAAT7PanelView Plus 7 6.5″ display touch terminal from PanelView Plus 700 touch terminal
2711P-RAAK7PanelView Plus 7 6.5″ display keypad touch terminal from PanelView Plus 700 keypad/keypad touch or PanelView Standard 600 keypad/keypad touch
2711P-RAAT10PanelView Plus 7 10.4″ display touch terminal from PanelView Plus 1000 touch/PanelView Standard 900 touch terminal
2711P-RAAK10PanelView Plus 7 10.4″ display keypad touch terminal from PanelView Plus 1000 keypad/keypad touch or PanelView Standard 900 keypad/keypad touch
2711P-RAAT12PanelView Plus 7 12.1″ display touch terminal from PanelView Plus 1250 touch/PanelView Standard 1000 touch terminal
2711P-RAAT12KPanelView Plus 7 12.1″ display touch terminal from PanelView Plus 1250 keypad/keypad touch or PanelView Standard 1000 keypad/keypad touch
2711P-RAAT15PanelView Plus 7 15″ display touch terminal from PanelView Plus 1500 touch
2711P-RAAK15PanelView Plus 7 15″ display keypad touch terminal from PanelView Plus 1500 keypad/keypad touch
2711P-RGST9WHygienic replacement gasket, blue silicone for 9-in. stainless steel terminal
2711P-RGST12WHygienic replacement gasket, blue silicone for 12-in. stainless steel terminal
