PanelView 5000 Graphic Terminals

Our PanelView™ 5000 Graphic Terminals offer an intuitive, modern design and provide enhanced Logix integration that uses Studio 5000 View Designer software. This integration lets engineers enter configuration information once and use it for the entire automation design. It also helps you build modern applications with high-speed HMI buttons for jogging applications, scalable vector graphics, and a pre-configured system banner that provides diagnostic information.

PanelView 5000 |  Overview


  • Includes Logix-based alarms to eliminate need for additional configuration
  • Features automatic diagnostics that annunciate faults in capable field devices with no user programming
  • Achieves <100 ms response for machine jogging applications with a high-speed HMI button
  • Provides Logix tag extended property support to help develop richer context
  • Features a modern design with a slim, aluminum bezel
  • Allows for the ability to create custom, re-usable add-on graphics to more efficiently build your applications
  • Shares tags, alarms, and other data using Studio 5000 View Designer™ environment automatically
  • Offers emulator to test run a project without downloading to a physical terminal
  • Uses a built-in VNC server to support a remote VNC client for monitoring and troubleshooting

PanelView 5510 Graphic Terminals

  • Offers visualization solution for larger applications
  • Offers display sizes from 7…19 in. with wide screen, touch, and keypad options
  • Supports 500 screens, connection to four controllers, and up to 4000 tag-based alarms per controller
  • Provides 1.46 GHz dual-core processor, 1 Gb RAM, 4 Gb flash
  • Features HTML5-compatible browser that can display websites, videos and IP camera streams
  • Offers IP69K rating for hygienic environments in stainless steel, conformally coated models
  • Certified for marine and offshore applications

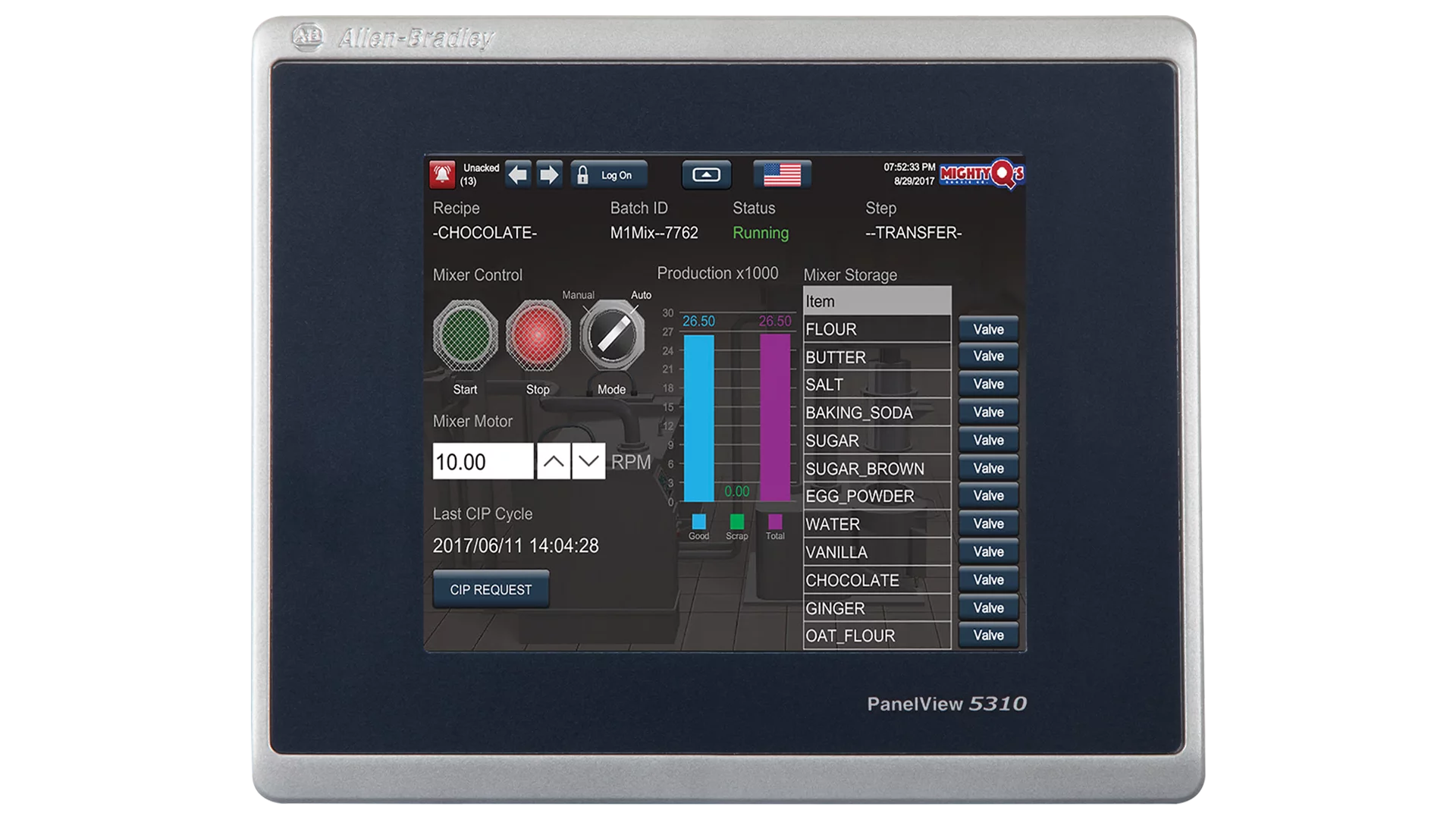

PanelView 5310 Graphic Terminals

  • Offers a right-sized visualization solution for smaller applications
  • Offers wide screen display sizes from 6…12 in.
  • Supports 100 screens, connection to one controller, and 4000 tag-based alarms
  • Provides 1.46 GHz processor, 1 Gb RAM, 4 Gb flash
