Allen-Bradley OptixPanel Graphic Terminals

OptixPanel Graphic Terminals

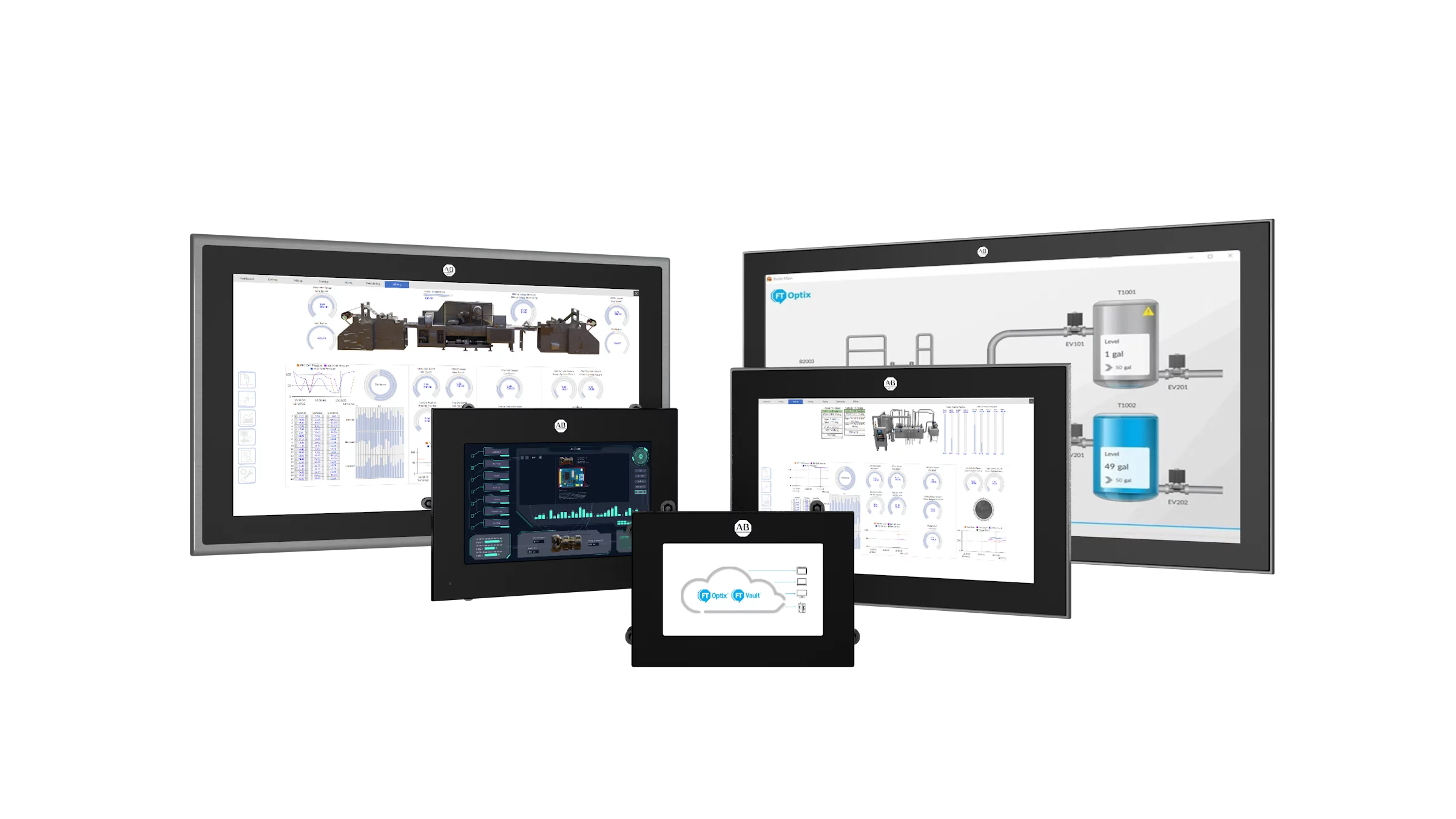

What makes our new graphic terminals stand out? OptixPanel™ graphic terminals give you a PC-like user experience in a sealed HMI appliance. There is no operating system to secure and smaller applications can benefit from the superior price-performance ratio. These graphic terminals are also available in a wide range of screen sizes, bezel options, aspect ratios and touch screen technologies that support gestures, such as swipe and pinch, for easier integration on your factory floor.

OptixPanel Graphic Terminals |  Overview

Product Configurations

OptixPanel Graphic Terminals

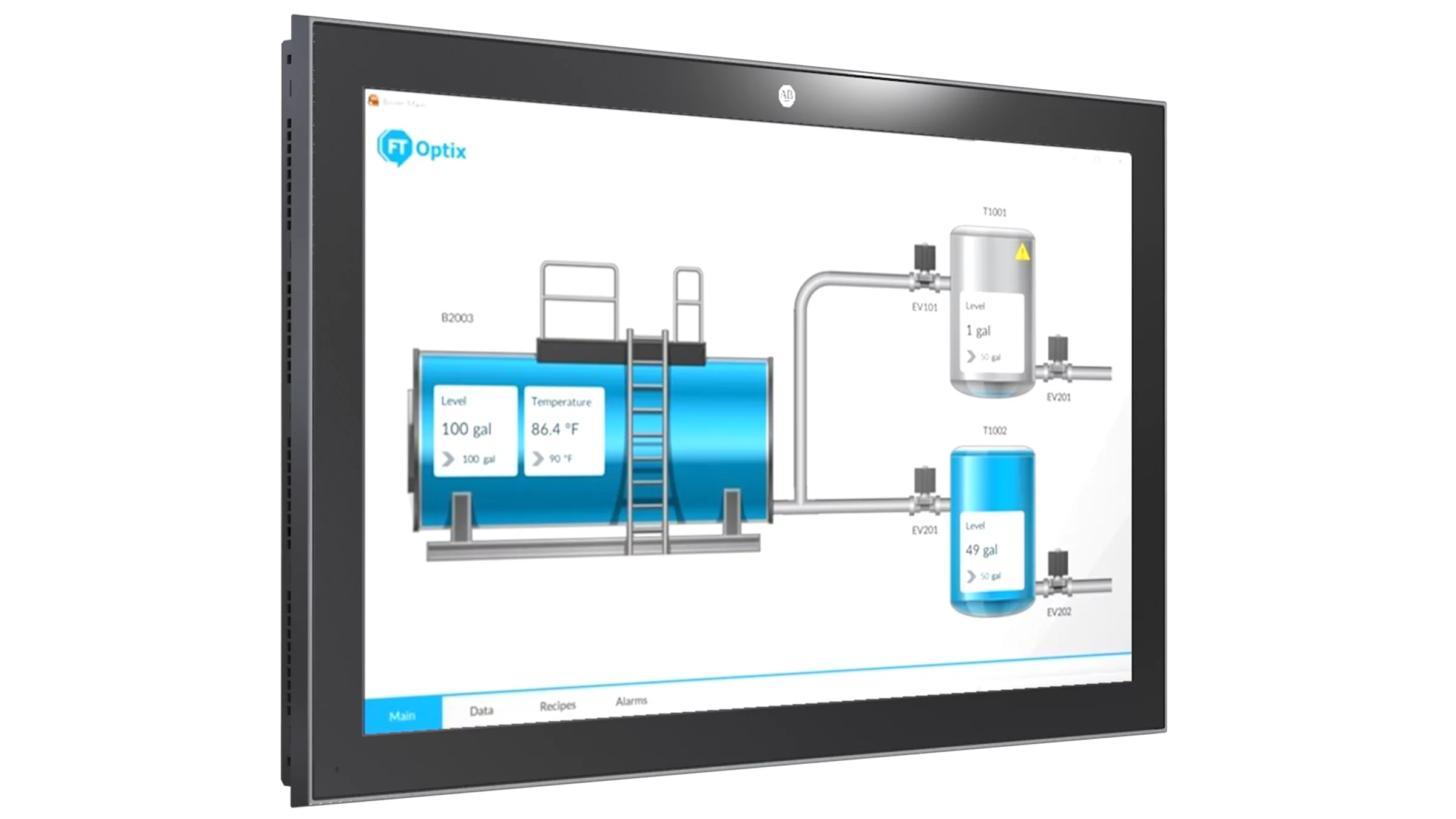

Allen-Bradley OptixPanel Standard Graphic Terminal

  • Available from 7” to 21.5″ screen size
  • Includes various bezel options, aspect ratios and touch screen technologies
    • Aluminum widescreen or 4:3 with single touch analog resistive screen
    • Aluminum True Flat 4:3 with single touch analog resistive screen
    • Aluminum and glass widescreen with PCAP multitouch screen
    • Stainless-steel IP69K widescreen with single touch analog resistive screen
    • Screen support for gestures (swipe, pinch, and so on) in the multitouch variants
  • Supports various connectivity options
    • Two USB 3.0 ports
    • Two Gigabit Ethernet ports
      • Ability to operate independently on two networks
      • Ability to enable FactoryTalk Remote Access connectivity to devices on the local subnetwork
  • One DB9 serial port (RS232/422/485) isolated
  • Runs FactoryTalk Remote Access Pro
  • Runs FactoryTalk Optix with 11 feature tokens, upgradeable to 15
  • Includes FactoryTalk® Optix™ Runtime Medium license (11 feature tokens), upgradable to Large (15 feature tokens)
  • Includes FactoryTalk® Remote Access™ Runtime Pro license
OptixPanel Graphic Terminals

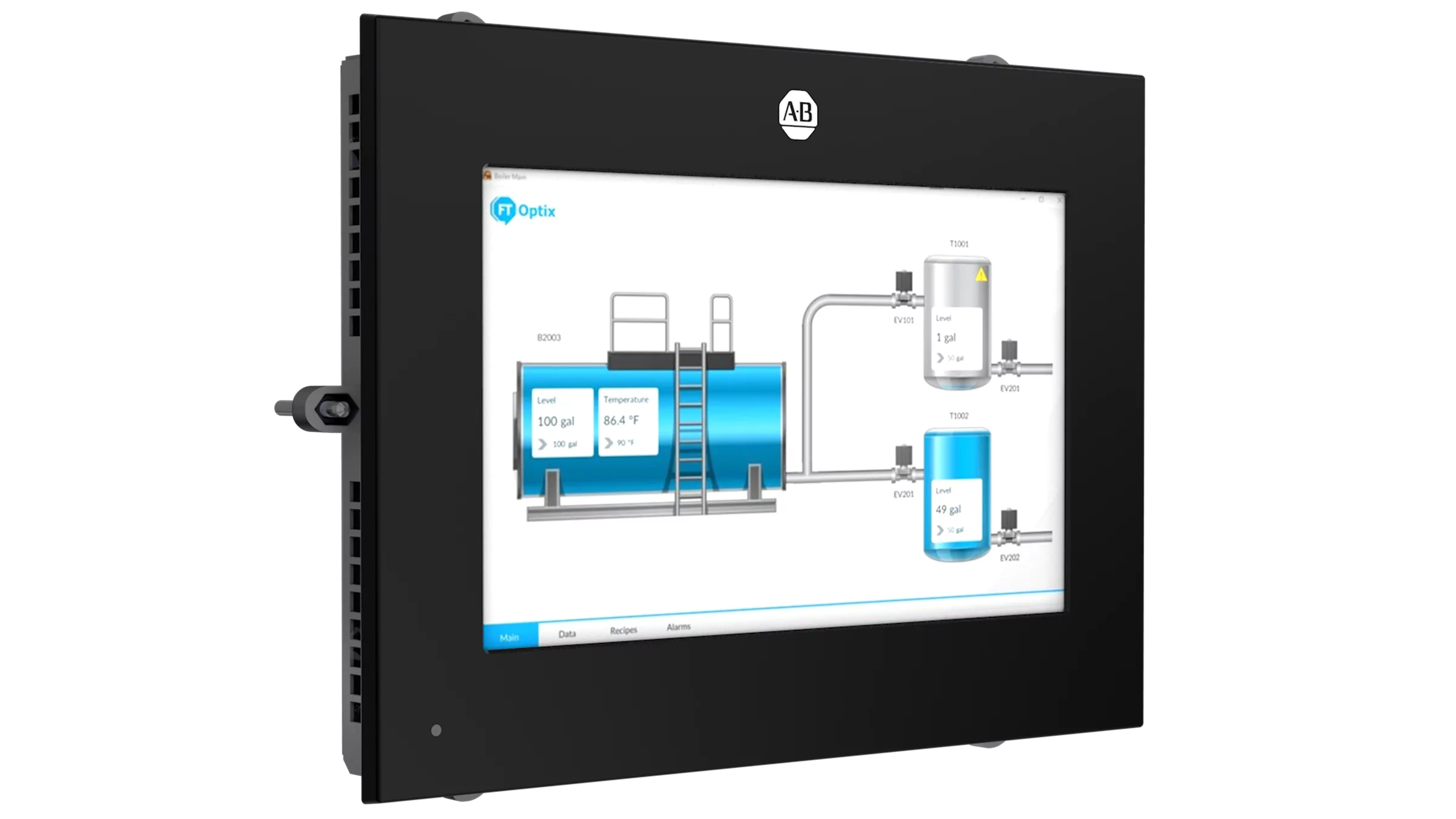

Allen-Bradley OptixPanel Compact Graphic Terminal

  • Available in 4” and 7” screen sizes making some applications easier
  • Includes various bezel options and touch screen technologies
    • Aluminum Widescreen with single touch analog resistive screen
    • Aluminum and glass widescreen with PCAP multitouch screen
    • Screen support for gestures (swipe, pinch, and so on) in the multitouch variants
  • Supports various connectivity options
    • One USB 2.0 port
    • One Gigabit Ethernet port
    • One DB9 serial port (RS232/422/485) non-isolated
  • Runs FactoryTalk Remote Access Basic
  • Runs FactoryTalk Optix with 8 feature tokens, upgradeable to 11
  • Includes FactoryTalk® Optix™ Runtime Small license (8 feature tokens), upgradable to Medium (11 feature tokens)
  • Includes FactoryTalk® Remote Access™ Runtime Basic license, upgradable to Pro license

Product Selection

Catalog Number Description
2800C-043AS-1BOptixPanel 2800, OptixPanel Compact Terminals, Aluminum, 4.3 in. Wide Display, Resistive Single Touch, Brandless, 16:9 – 480×272, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800C-043AS-1SOptixPanel 2800, OptixPanel Compact Terminals, Aluminum, 4.3 in. Wide Display, Resistive Single Touch, Standard Branding, 16:9 – 480×272, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800C-043CM-1BOptixPanel 2800, OptixPanel Compact Terminals, Aluminum and Glass (PCAP), 4.3 in. Wide Display, Capacitive Multi Touch, Brandless, 16:9 – 480×272, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800C-043CM-1SOptixPanel 2800, OptixPanel Compact Terminals, Aluminum and Glass (PCAP), 4.3 in. Wide Display, Capacitive Multi Touch, Standard Branding, 16:9 – 480×272, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800C-070AS-1SOptixPanel 2800, OptixPanel Compact Terminals, Aluminum, 7 in. Wide Display, Resistive Single Touch, Standard Branding, 15:10 – 800×480, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800C-070AS-1BOptixPanel 2800, OptixPanel Compact Terminals, Aluminum, 7 in. Wide Display, Resistive Single Touch, Brandless, 15:10 – 800×480, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800C-070CM-1SOptixPanel 2800, OptixPanel Compact Terminals, Aluminum and Glass (PCAP), 7 in. Wide Display, Capacitive Multi Touch, Standard Branding, 15:10 – 800×480, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800C-070CM-1BOptixPanel 2800, OptixPanel Compact Terminals, Aluminum and Glass (PCAP), 7 in. Wide Display, Capacitive Multi Touch, Brandless, 15:10 – 800×480, 1x Ethernet, 1x USB, Standard (8 token), Non Conformal Coated
2800S-070DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 7 in. Wide Display, Resistive Single Touch, Brandless, 15:10 – 800×480, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-070DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 7 in. Wide Display, Resistive Single Touch, Standard Branding, 15:10 – 800×480, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-070FM-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 7 in. Wide Display, Capacitive Multi Touch, Brandless, 15:10 – 800×480, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-070FM-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 7 in. Wide Display, Capacitive Multi Touch, Standard Branding, 15:10 – 800×480, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-101DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 10.1 in. Wide Display, Resistive Single Touch, Brandless, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-101DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 10.1 in. Wide Display, Resistive Single Touch, Standard Branding, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-101FM-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 10.1 in. Wide Display, Capacitive Multi Touch, Brandless, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-101FM-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 10.1 in. Wide Display, Capacitive Multi Touch, Standard Branding, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-101XS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 10.1 in. Wide Display, Resistive Single Touch, Brandless, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-101XS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 10.1 in. Wide Display, Resistive Single Touch, Standard Branding, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-104DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 10.4 in. Display, Resistive Single Touch, Brandless, 4:3 800×600, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-104DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 10.4 in. Display, Resistive Single Touch, Standard Branding, 4:3 800×600, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-104ES-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum TrueFlat – EX, 10.4 in. Display, Resistive Single Touch, Brandless, 4:3 800×600, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-104ES-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum TrueFlat – EX, 10.4 in. Display, Resistive Single Touch, Standard Branding, 4:3 800×600, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-120DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 12.0 in. Display, Resistive Single Touch, Brandless, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-120DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 12.0 in. Display, Resistive Single Touch, Standard Branding, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-120ES-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum TrueFlat – EX, 12.0 in. Display, Resistive Single Touch, Brandless, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-120ES-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum TrueFlat – EX, 12.0 in. Display, Resistive Single Touch, Standard Branding, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-121DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 12.1 in. Wide Display, Resistive Single Touch, Brandless, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-121DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 12.1 in. Wide Display, Resistive Single Touch, Standard Branding, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-121FM-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 12.1 in. Wide Display, Capacitive Multi Touch, Brandless, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-121FM-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 12.1 in. Wide Display, Capacitive Multi Touch, Standard Branding, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-121XS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 12.1 in. Wide Display, Resistive Single Touch, Brandless, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-121XS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 12.1 in. Wide Display, Resistive Single Touch, Standard Branding, 16:10 1280×800, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-150DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 15 in. Display, Resistive Single Touch, Brandless, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-150DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 15 in. Display, Resistive Single Touch, Standard Branding, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-150ES-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum TrueFlat – EX, 15 in. Display, Resistive Single Touch, Brandless, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-150ES-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum TrueFlat – EX, 15 in. Display, Resistive Single Touch, Standard Branding, 4:3 1024×768, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-156DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 15.6 in. Wide Display, Resistive Single Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-156DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 15.6 in. Wide Display, Resistive Single Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-156FM-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 15.6 in. Wide Display, Capacitive Multi Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-156FM-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 15.6 in. Wide Display, Capacitive Multi Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-156XS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 15.6 in. Wide Display, Resistive Single Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-156XS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 15.6 in. Wide Display, Resistive Single Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-185DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 18.5 in. Wide Display, Resistive Single Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-185DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 18.5 in. Wide Display, Resistive Single Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-185FM-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 18.5 in. Wide Display, Capacitive Multi Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-185FM-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 18.5 in. Wide Display, Capacitive Multi Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-185XS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 18.5 in. Wide Display, Resistive Single Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-185XS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 18.5 in. Wide Display, Resistive Single Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-215DS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 21.5 in. Wide Display, Resistive Single Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-215DS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum – EX, 21.5 in. Wide Display, Resistive Single Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-215FM-N1BOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 21.5 in. Wide Display, Capacitive Multi Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-215FM-N1SOptixPanel 2800, OptixPanel Standard Terminals, Aluminum and Glass (PCAP) – EX, 21.5 in. Wide Display, Capacitive Multi Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-215XS-N1BOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 21.5 in. Wide Display, Resistive Single Touch, Brandless, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
2800S-215XS-N1SOptixPanel 2800, OptixPanel Standard Terminals, Stainless steel IP69K, 21.5 in. Wide Display, Resistive Single Touch, Standard Branding, 16:9 1920×1080, 2x Ethernet, 2x USB, Standard (11 token), Non Conformal Coated
