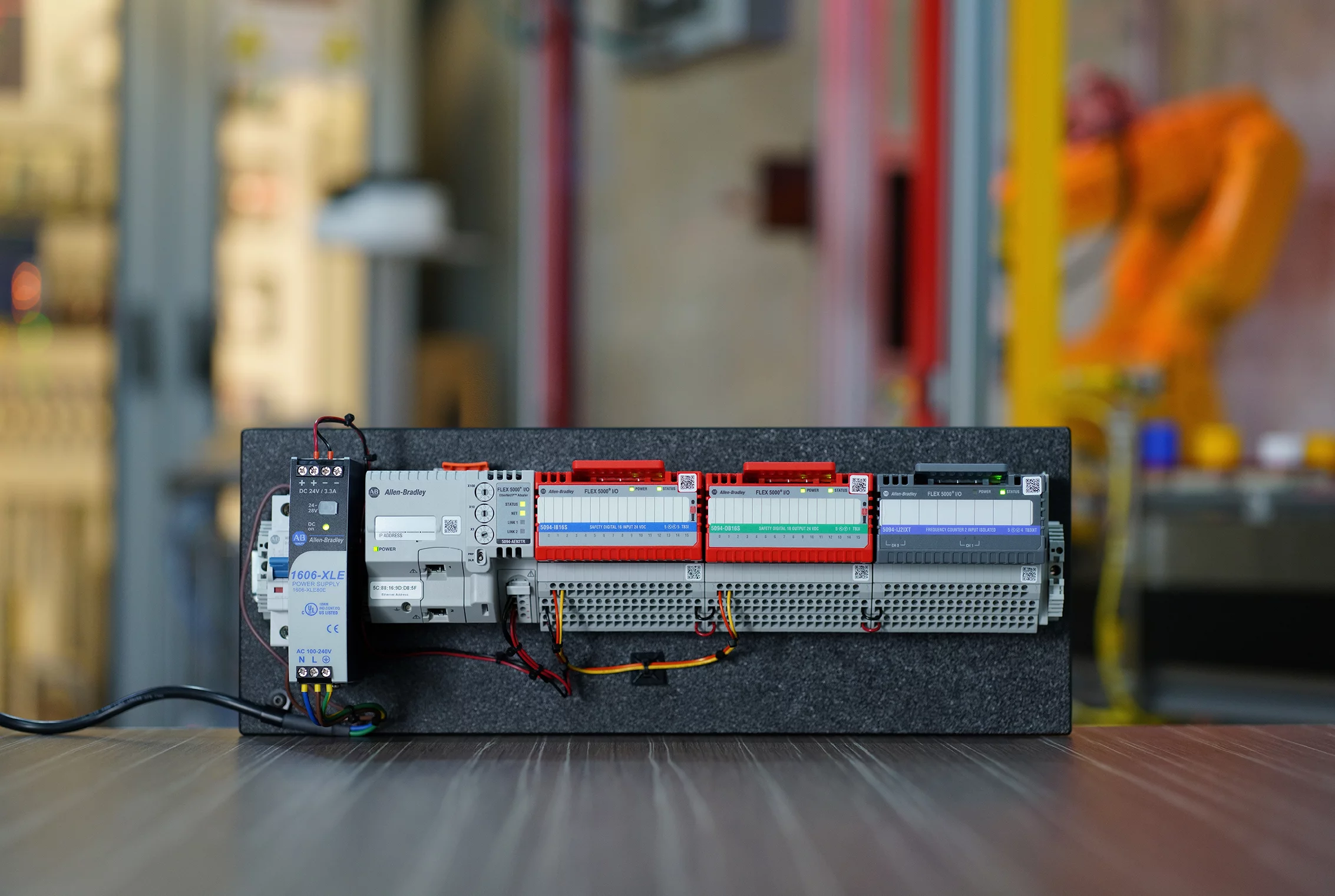

FLEX 5000 I/O Modules

Our FLEX 5000® I/O modules are a rugged and flexible distributed I/O solution, which allows you to choose your I/O to meet your operational needs. FLEX 5000 I/O enhances communication with 1 Gb EtherNet/IP™ connectivity, which offers higher speed and increased bandwidth. To provide flexibility in your network architecture, these modules include 2 copper or 2 fiber ports (SFP) and support for DLR, Star, Linear, and PRP topologies.

5094 FLEX 5000 I/O Modules |  Overview

Overview

  • Reduces system costs and complexity with the flexibility to mix and match standard and safety I/O modules in one platform
  • Offers true integrated safety with discrete and analog fail-safe I/O modules, TÜV certified up to SIL 3, PLe, Cat. 4, with up to 10 ms safety reaction time
  • Enhances communication with 1 Gb EtherNet/IP connectivity through copper or fiber, with SFP adapters
  • Supports a wide range of network topologies: Device Level Ring (DLR), Star, Linear, and Parallel Redundancy Protocol (PRP)
  • Optimizes footprint with horizontal or vertical installation and interconnect cable extension
  • Provides direct fiber connection to the adapter with the option to connect up to 16 modules per adapter
  • Allows users to replace modules while the system is in operation with easy snap-on installation via Removal and Insertion Under Power (RIUP)
  • Offers flexible and modular capability to support up to 32-channel digital and 8-channel analog input/output
  • Operates in -40…+70 °C (-40…+158 °F) temperatures and in hazardous areas in Class I, Division 2, Zone 2, Groups A, B, C, D
  • Allows for use in extreme environments with XT version up to G3 with conformal coating, which helps protect against environmental stresses
  • Offers the ability of reporting frequency, acceleration and directions with isolated-frequency input modules
  • Functions as remote I/O modules with ControlLogix® 5580, CompactLogix™ 5380 and CompactLogix 5480 standard controllers and with GuardLogix® 5580 and Compact GuardLogix 5380 safety controllers
  • Supports ControlLogix 5580 controller redundancy (in DLR and PRP network topologies) for high availability applications from Studio 5000 Logix Designer® application version 33 or later
  • Ideal for Hybrid and Process applications such as emergency shutdown, burner management, turbine control, compressor control, oil and gas auxiliary boilers, high-pressure protection, lighting, and ventilation management

Product Selection

Catalog Number Description
5094-AEN2SFPR5094 Ethernet/IP SFP Adapter 16 Modules
5094-AEN2SFPRXT5094XT Ethernet/IP SFP Adapter 16 Modules
5094-AEN2TR5094 Ethernet Adapter 16 Modules RJ45
5094-AEN2TRXT5094XT Ethernet Adapter 16 Modules RJ45
5094-AENRTB-QTY55094 Adapter RTB Screw -Pack of 5
5094-AENRTBS-QTY55094 Adapter RTB Spring -Pack of 5
5094-AENSFPR5094 Ethernet/IP SFP Adapter 8 Modules
5094-AENSFPRXT5094XT Ethernet/IP SFP Adapter 8 Modules
5094-AENTR5094 Ethernet Adapter 8 Modules RJ45
5094-AENTRXT5094XT Ethernet Adapter 8 Modules RJ45
5094-CE055094 Inter-Connect Cable 0.5 meter
5094-CE105094 Inter-Connect Cable 1 Meter
5094-CE305094 Inter-Connect Cable 3 Meter
5094-ECR-QTY55094 End Cap
5094-HSC5094 High Speed Counter
5094-HSCXT5094XT High Speed Counter
5094-IA165094 Digital 16 Input 120 VAC
5094-IA16XT5094XT Digital 16 Input 120 VAC
5094-IB165094 Digital 16 Input
5094-IB16S5094 Safety Digital 16 Input
5094-IB16SXT5094XT Safety Digital 16 Input
5094-IB16XT5094XT Digital 16 Input
5094-IB325094 Digital 32 Input 24 VDC
5094-IB32XT5094XT Digital 32 Input 24 VDC
5094-IF4IHS5094 Safety Analog Input HART 4 Channel
5094-IF4IHSXT5094XT Safety Analog Input HART 4 Channel
5094-IF85094 Analog 8 Input
5094-IF8IH5094 Analog 8 Input Isolated HART
5094-IF8IHXT5094XT Analog 8 Input Isolated HART
5094-IF8XT5094XT Analog 8 Input
5094-IM85094 Digital 8 Input 240 VAC
5094-IM8XT5094XT Digital 8 Input 240 VAC
5094-IY85094 Universal Analog 8 Input
5094-IY8XT5094XT Universal Analog 8 Input
5094-MB5094 Mounting Base
5094-MBXT5094XT Mounting Base
5094-N25094 Filler Module
5094-OA165094 Digital 16 Output 120/240 VAC
5094-OA16XT5094XT Digital 16 Output 120/240 VAC
5094-OB165094 Digital 16 Output
5094-OB16S5094 Safety Digital 16 Output
5094-OB16SXT5094XT Safety Digital 16 Output
5094-OB16XT5094XT Digital 16 Output
5094-OB325094 Digital 32 Output 24 VDC
5094-OB32XT5094XT Digital 32 Output 24 VDC
5094-OB85094 Digital 8 Output 24 VDC
5094-OB8XT5094XT Digital 8 Output 24 VDC
5094-OF85094 Analog 8 Output
5094-OF8IH5094 Analog 8 Output Isolated HART
5094-OF8IHXT5094XT Analog 8 Output Isolated HART
5094-OF8XT5094XT Analog 8 Output
5094-OW4IS5094 Safety Relay 4 Output Isolated
5094-OW4ISXT5094XT Safety Relay 4 Output Isolated
5094-OW8I5094 Relay 8 Output Isolated
5094-OW8IXT5094XT Relay 8 Output Isolated
5094-SERIAL5094 Serial Module
5094-SERIALXT5094XT Serial Module
5094-RTB35094 RTB Screw
5094-RTB32C5094 RTB 32 Output Screw
5094-RTB32CS5094 RTB 32 Output Spring
5094-RTB32CXT5094XT RTB 32 Output Screw
5094-RTB32V5094 RTB 32 Input Screw
5094-RTB32VS5094 RTB 32 Input Spring
5094-RTB32VSXT5094XT RTB 32 Input Spring
5094-RTB32VXT5094XT RTB 32 Input Screw
5094-RTB3AC5094 RTB AC Screw
5094-RTB3ACS5094 RTB AC Spring
5094-RTB3ACSXT5094XT RTB AC Spring
5094-RTB3ACXT5094XT RTB AC Screw
5094-RTB3I5094 RTB Isolated Screw
5094-RTB3IS5094 RTB Isolated Spring
5094-RTB3ISXT5094XT RTB Isolated Spring
5094-RTB3IXT5094XT RTB Isolated Screw
5094-RTB3S5094 RTB Spring
5094-RTB3SXT5094XT RTB Spring
5094-RTB3T5094 RTB CJC Screw
5094-RTB3TS5094 RTB CJC Spring
5094-RTB3TSXT5094XT RTB CJC Spring
5094-RTB3TXT5094XT RTB CJC Screw
5094-RTB3W5094 RTB Relay Screw
5094-RTB3WS5094 RTB Relay Spring
5094-RTB3WSXT5094XT RTB Relay Spring
5094-RTB3WXT5094XT RTB Relay Screw
5094-RTB3XT5094XT RTB Screw
5094-SAJMPR-QTY105094 SA Power Jumper Screw – Pack of 10
5094-STB-QTY55094 Shield RTB Screw – Pack of 5
