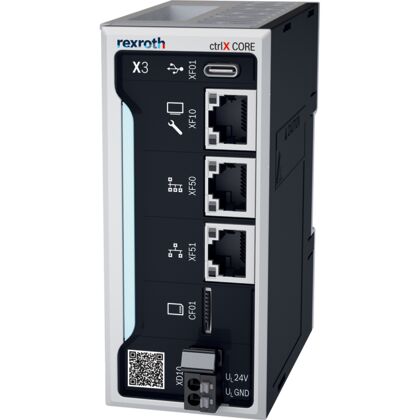

ctrlX CORE X3 compact control

Power density meets compact design

The compact design of the embedded ctrlX CORE control saves up to 50% of space in the control cabinet compared to conventional control platforms. The powerful 64-bit multicore ARM CPU means that it can be used in almost all applications.

The ctrlX CORE control is a flexible and open control platform suitable for industrial use which allows users to assign additional functions to the control with ease in the form of apps. The ctrlX Store contains a vast selection of Rexroth and third-party apps. In addition, the ctrlX Device Portal enables the centralized output of software functions or remote maintenance across several locations.

The ctrlX CORE in its compact form completes approx. 70% of all general automation tasks.

The main features of the ctrlX CORE X3 at a glance:
- SoC Xilinx ZYNQ Ultrascale, ARM A53 Quadcore
- 2 GB RAM
- 4 GB eMMc
- 1 MBit retain data
- 1x USB-C
- 1 µSD card slot
- 3x 1-GBit Ethernet interfaces, thereof 1x EtherCATMaster port
- Modern industrial-grade Linux-based ctrlX OS operating system
- Flexible and safe software scalability with apps
- Consistent and web-based engineering

CONTROL COREX-C-X3-11-ANNN-21.01-01RS-NN-NN
