CompactBlock Guard Safety I/O Modules

Our Bulletin 1791DS and 1791ES CompactBlock™ Guard I/O™ modules provide the advantages of distributed I/O for safety systems. These modules work with safety controllers that communicate on DeviceNet™ or EtherNet/IP™ networks using CIP™ Safety. CompactBlock Guard Safety I/O is optimized to work with GuardLogix®, and SmartGuard™ controllers.

1791 CompactBlock Guard Safety I/O |  Overview

Overview

  • Includes TÜV certification as a system with GuardLogix® and SmartGuard™ 600 controllers
  • Supports both standard and safety control
  • Includes 24V DC I/O circuits with built-in power supply
  • Offers point-level diagnostics for troubleshooting of all input and output circuits
  • Includes removal and insertion under power (RIUP), when following appropriate safety practices
  • Offers DIN-rail mounting and removable terminals for easy installation and maintenance
  • Includes common power and I/O wiring
  • Offers additional standard solid-state outputs for any unused safety inputs
  • Compatible with Allen‑Bradley® Guardmaster® safety devices

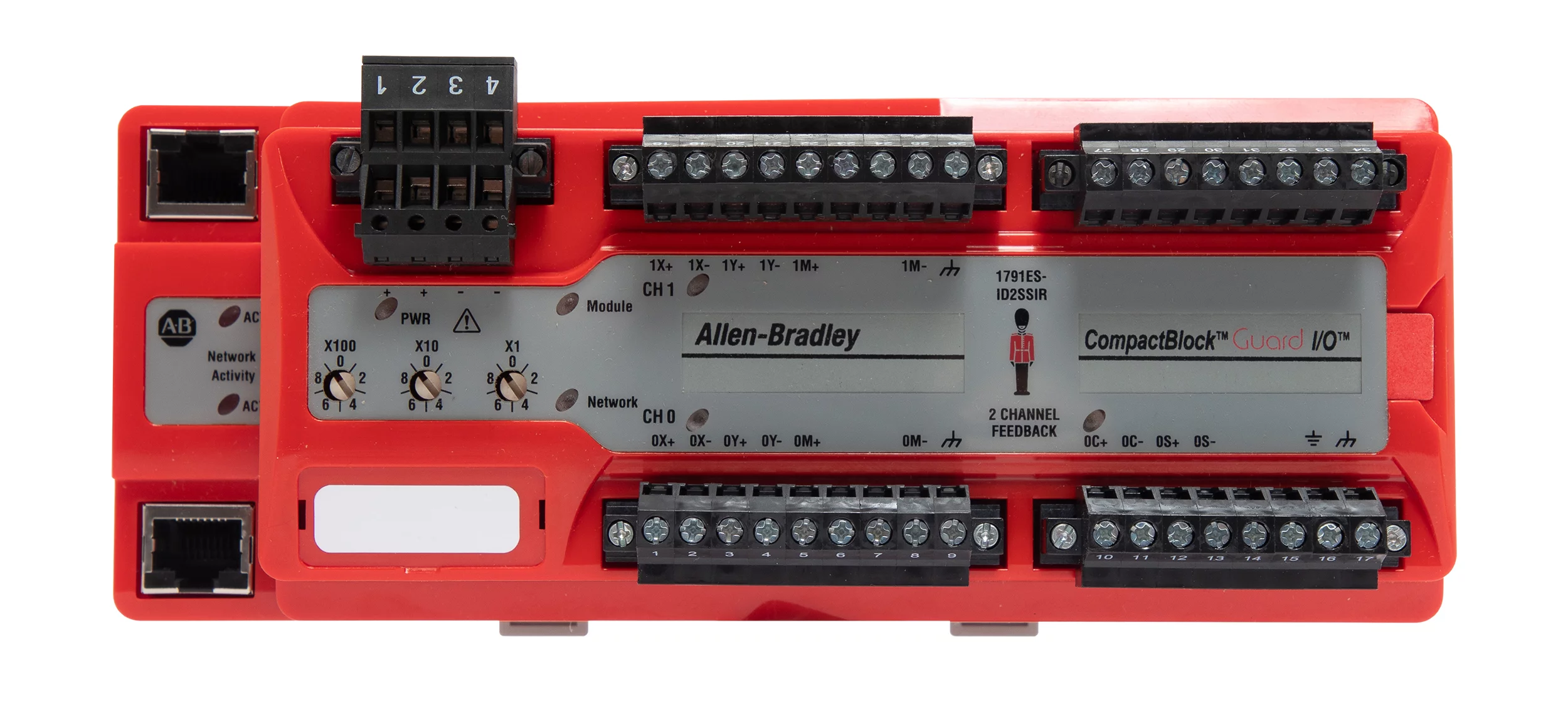

1791ES CompactBlock Guard I/O 2-Channel Encoder Feedback Module

  • Compatible with GuardLogix 5580 and Compact GuardLogix 5380 controller
  • Supports Incremental and Absolute Encoder Feedback such as Sine/Cosine, AqB, SSI directly into the Safety Task
  • Supports for programming of dynamic direction, position, and velocity setpoints
  • Rated for single and dual Channel configurations
  • Includes two RJ45 ports for fault-tolerant EtherNet/IP based network topologies such as Linear and Device Level Ring Topologies

1791DS CompactBlock™ Guard I/O™ for DeviceNet

  • Compatible with safety controllers that communicate on DeviceNet™ using CIP™ Safety
  • Includes 4…16 single-channel safety inputs and 4…16 standard pulse test outputs
  • Some blocks include four or eight safety solid-state outputs, single- or dual-channel or four single-channel safety relay outputs

1791ES CompactBlock Guard I/O for EtherNet/IP

  • Compatible with safety controllers that communicate on EtherNet/IP™ using CIP Safety
  • Includes single- or dual-channel safety inputs (16 single/8 dual or 8 single/4 dual) and 8 or 16 standard pulse test outputs
  • Some blocks include four dual-channel safety outputs

Product Selection

Catalog Number Description
1791DS-IB16DeviceNet Safety CompactBlock Input Module, 16 Inputs, 16 Test Outputs
1791DS-IB8XOBV4DeviceNet Safety CompactBlock Input Module, 8 Inputs, 8 Test Outputs, 4 Solid State Bi-Polar Outputs
1791ES-IB16EtherNet/IP Safety CompactBlock Input Module, 16 Single Channel Inputs, 8 Dual Channel
1791ES-IB8XOBV4EtherNet/IP Safety CompactBlock Input Module, 8 Inputs, 4 Dual Channel Bipolar Outputs
1791ES-ID2SSIREtherNet/IP Safety CompactBlock Input Module, 2 Channel Incremental Encoder / Serial Synchronous Iterface
