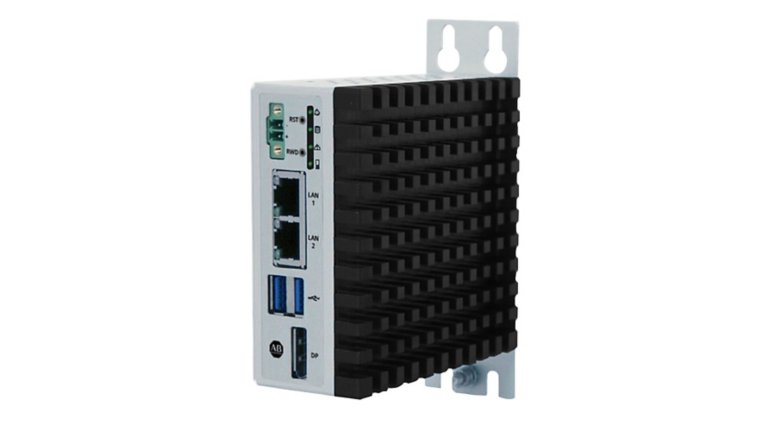

ASEM 6300T Box Thin Client

Our ASEM™ 6300T Box Thin Clients feature Intel Apollo Lake Atom processors, making them ideal for human machine interface (HMI), IIoT gateway and data logging applications. Atom class units are also available as ThinManager® ready thin clients to boot natively into ThinManager software with no solid-state drive (SSD) on board. These units have a fanless design making them optimal for applications requiring low maintenance, as well as multiple mounting methods to fit application needs.

6300T Box Thin Client |  Overview

Overview

  • Available in single and dual DisplayPort that supports up to 4K high resolution
    • Single DisplayPort unit features 2x Ethernet and 2x USB 3.0 (Type A ports)
    • Dual DisplayPort thin client features 2 x Ethernet ports, 4x USB 3.0 (Type A) ports, 1 serial port and audio jack output
  • Includes fanless, book mount construction, 24V DC
  • Operating temperature: 0…50 °C (32…122 °F); 0…45 °C (32…113 °F) for i7 processors
  • ThinManager compatible
Operating systemMicrosoft Windows 10 IoT Enterprise LTSC 2019 64-bit
ProcessorIntel Atom x7-3950 1.6 GHz (2.0 GHz Burst), 4 cores/4 threads, 2 MB L2 cache)
Video controller  Intel HD Graphics 505 integrated in x7-3950, 500/650 MHz
System memory – RAM4 GB/8 GB, LP-DDR4 – 2400 (soldered)
Mass storageM.2 size 2242 key B SSD SATA III (up to 240 GB)
LAN2 x Ethernet 10/100/1000 Mbps (Intel I210, RJ45)
USBSingle DisplayPort – 2 x USB 3.0 (Type-A)  / Dual DisplayPort – 4 x USB 3.0 (Type-A)
Video output1 x DisplayPort or 2 x DisplayPort (model dependent)
Power24V DC (18…32V DC) isolated
MountingDIN rail mount, wall mount (single DisplayPort model)
Case materialAluminum alloy
Operating temperature0…50 °C (32…122 °F)
Storage temperature-10…+60 °C (14…140 °F)
Approvals
  • CE (EN 61326-1, EN 61010-1, EN 61010-2-201)
  • cULus LISTED (UL61010)
  • RCM
Humidity80% (non-condensing)

Note: Thin Client ships without SSD or OS

Product Selection

Catalog Number Description
6300T-BAB1DC-ABNNNN-N1S6300T Thin Client, Book,One 4K Display, 24 VDC isolated, no UPS, No communication and no expansion, Atom, 4GB RAM, Box, No Storage, Standard Warranty, Standard AB Branding
6300T-BAB1DC-ACNNNN-N1S6300T Thin Client, Book,One 4K Display, 24 VDC isolated, no UPS, No communication and no expansion, Atom, 8GB RAM, Box, No Storage, Standard Warranty, Standard AB Branding
6300T-BBB2DA-ABNNNN-N1S6300T Thin Client, Book,Dual 4K Display, 24 VDC isolated, no UPS, No expansion, Atom, 4GB RAM, Box, No Storage, Standard Warranty, Standard AB Branding
6300T-BBD2DA-ABNNNN-N1S6300T Thin Client, DIN,Dual 4K Display, 24 VDC isolated, no UPS, No expansion, Atom, 4GB RAM, Box, No Storage, Standard Warranty, Standard AB Branding
6300T-BBB2DA-ACNNNN-N1S6300T Thin Client, Book,Dual 4K Display, 24 VDC isolated, no UPS, No expansion, Atom, 8GB RAM, Box, No Storage, Standard Warranty, Standard AB Branding
6300T-BBD2DA-ACNNNN-N1S6300T Thin Client, DIN,Dual 4K Display, 24 VDC isolated, no UPS, No expansion, Atom, 8GB RAM, Box, No Storage, Standard Warranty, Standard AB Branding
