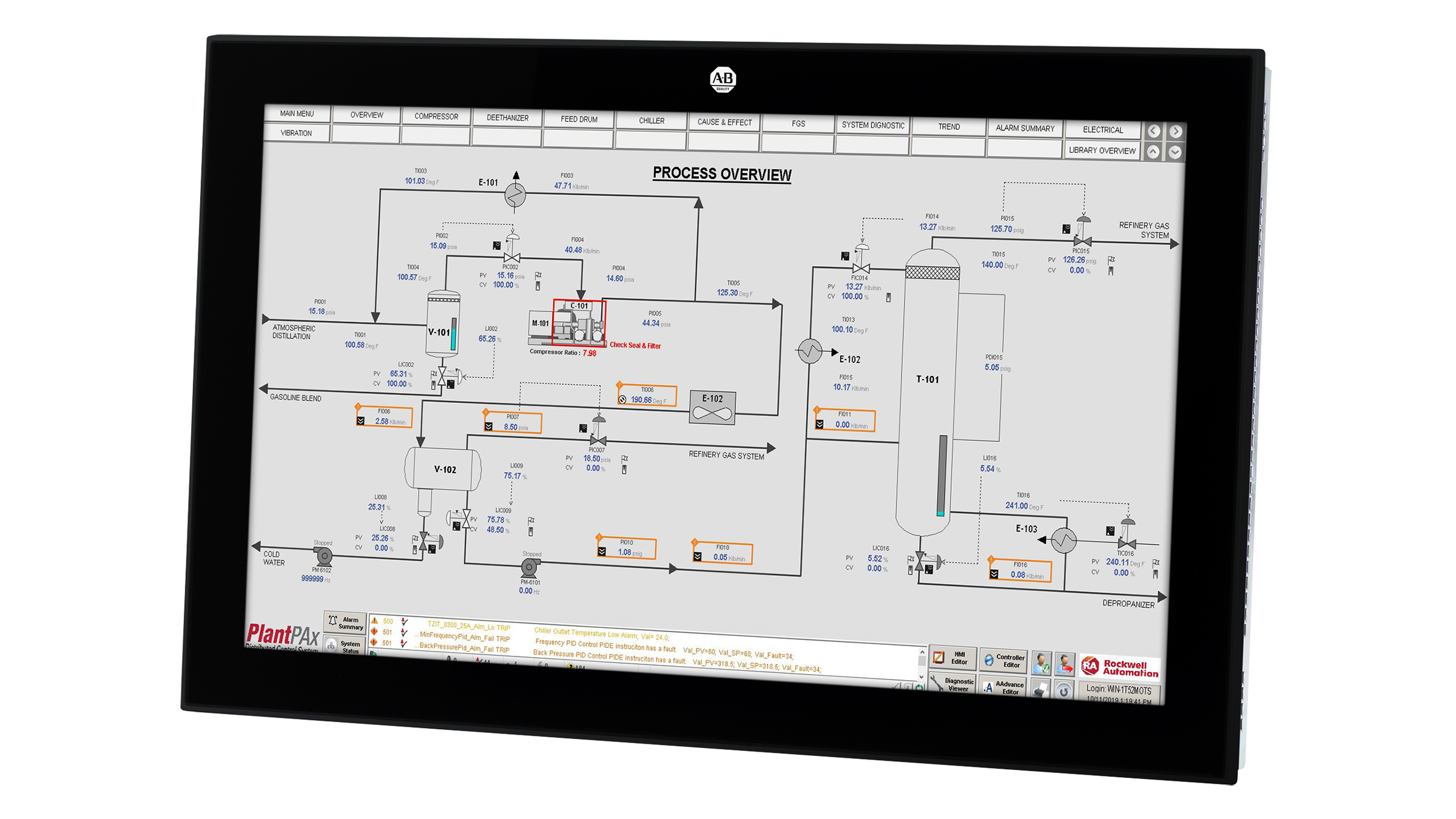

ASEM 6300P Panel PC

Our ASEM™ 6300P Panel PCs are based on the seventh generation Core i3, i5 and i7 Intel Kaby Lake H and Intel Celeron Skylake processors to handle complex industrial applications. Touch screen technologies, which enhance ease of use, include analog resistive and projected capacitive (for multitouch operation). This panel PC is available in a variety of display sizes and resolutions. There are options of either Standard or Low Profile bezel units. Both have resolutions up to full high definition.

IP65/IP66 (model dependant) environmental protection makes the ASEM 6300P Panel PC an excellent match for washdown applications such as food processing and life sciences. Fanless construction helps to ensure low maintenance operation and enhance longevity.

ASEM 6300B box PCs enhance cybersecurity by integrating ThinManager® software. Multiple PCs with locally stored applications spread across a plant floor can increase the attack surface and security risks. ThinManager software allows applications to run and be maintained from a central and secure location. The new ThinManager-ready BIOS comes preinstalled in the ASEM 6300B and 6300P industrial computers allowing you to take a new computer out of the box and place it directly into your ThinManager environment. The ThinManager console downloads all of the necessary application firmware and software without the need for Pre-Execution (PXE) or DHCP infrastructure. Just change the boot order on the new computer, define its IP address, and boot it into ThinManager. With over 100,000 configurations to choose from, the built-in ThinManager-ready BIOS is an industry exclusive. Plus, you’ll have guaranteed support from Rockwell Automation for your entire ThinManager system.

6300P Panel PC |  Overview

Overview

  • Offers 12.1…24 in. display sizes
  • Resolutions include FHD / SXGA / XGA / WXGA
  • Offers Standard or Low Profile bezels
  • Features aluminum and glass bezel units that support various resolutions, including full high-definition displays
  • Features Low Profile units in standard definition and full high-definition displays with the following bezel variants:
    • Aluminum
    • Aluminum Glass True Flat
    • Stainless steel widescreen IP69K (analog resistive) with replaceable blue food grade gasket
  • Includes analog resistive and projected capacitive (for multi-touch operation)
  • Supports “Jumbo Frame” and “Wake on LAN” network standards
  • Variations available with long distance support for up to two additional displays
  • Provides fanless construction
  • Offers additional options in TPM, PCI expansion slots, additional communications
  • ThinManager compatible
 Standard Bezel AluminumLow Profile Bezel Aluminum and
Aluminum Glass True Flat
LED backlight TFT LCD

12.1” – 1024×768*

15.0” – 1024×768

17” – 1280×1024

19” – 1280×1024

12.1” W – 1280×800 Stainless Steel

15.6” W – 1920×1080

18.5” W – 1920×1080

21.5” W – 1920×1080

24” W – 1920×1080

Touch screenAnalog Resistive

P-CAP Multitouch Aluminum Glass True Flat

or Analog Resistive – Aluminum

Protection gradeAluminum Bezel – IP65 / IP66 (model dependent ) – Stainless Steel Bezel – IP69K
Processor
(Stainless steel bezel only available with i5 processor)

Intel Celeron G3900E 2.40 GHz, 2 cores/2 threads, 2 MB L2 Smart Cache, soldered

Intel Core i3-7100E 2.9 GHz, 2 cores/4 threads, 3 MB Smart Cache, soldered

Intel Core i5-7440EQ, 2.90 GHz (3.60 GHz Turbo), 6 MB Smart Cache, 4 cores – 4 threads

Intel Core i7-7820EQ 3.0 GHz (3.7 GHz Turbo), 4 cores/8 threads, 8 MB Smart Cache

Chipset

Intel HM170 PCH (Platform Controller Hub)

Intel HM175 PCH (Platform Controller Hub) – Included in processor chip

Video controller

Intel HD Graphics 510 integrated into Intel Celeron microprocessor, 950MHz

Intel HD Graphics 630 integrated in i3-7100E, 350/950 MHz Clock

Intel HD Graphics 630 integrated in i5-7440EQ / i7-7820EQ, 350 MHz/1 GHz Clock

System memory – RAM

4 GB/8 GB/16 GB/32 GB (2 x SODIMM DDR4-2400 module)

Stainless steel bezel only available with 8 GB

Mass storage

1 x bootable up to 128 GB CFast SATA III slot onboard with external front access

1 x onboard connector for direct insertion of mSATA up to 1 TB SSD SATA III

1 x onboard connector for 2.5” SSD SATA III up to 1 TB

LAN

4 x Ethernet 10/100/1000 Mbps (RJ45 – 3 x Intel I210, 1 x Intel I219-LM)

Stainless steel bezel – 3 x Ethernet 10/100/1000 Mbps (RJ45 – 3 x Intel I210, 1 x Intel I219-LM)

USB
(Number of USB ports is model dependent)

3 x USB 3.0 rear (Type-A)

2 x USB 2.0 rear (Type-A)

1 x USB 2.0 front (Type-A)

3 x USB 3.0 rear (Type-A)

2 x USB 2.0 rear (Type-A)

Serial1 x RS232 (DB9M)
Video output1 x DVI-D
Expansion slots1 x PCIe x4 (5 Gb/s)
Power24V DC (18 to 32V DC) isolated
Certified operating systemMicrosoft® Windows 10 IoT Enterprise 2019 64 bit
Operating temperature

0…50 °C (32…122 °F) with Celeron/Core i3 processor

0…45 °C (32…113 °F) with Core i7 processor

Approvals
  • CE (EN 61326-1, EN 61010-1, EN 61010-2-201)
  • cULus Listed (UL61010)
  • RCM

Product Selection

Catalog Number Description
6300P-121BAPSXDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 12.1″Aluminum, Panel, Standard Single Touch (Resistive), 4:3 1024X768, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-121BAPSXDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 12.1″Aluminum, Panel, Standard Single Touch (Resistive), 4:3 1024X768, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-121FAPSXDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 12.1″Aluminum, Panel, Standard Single Touch (Resistive), 4:3 1024X768, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-121JXPSWDNA-5CBAW19NDNBNN-NN1SASEM 6300P Panel PC, 12.1″Stainless steel, Panel, Standard Single Touch (Resistive), 16:10 1280X800, 24 VDC isolated, Fanless ,No expansion, Intel Core i5, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-150BAPSXDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 15″Aluminum, Panel, Standard Single Touch (Resistive), 4:3 1024X768, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-150BAPSXDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 15″Aluminum, Panel, Standard Single Touch (Resistive), 4:3 1024X768, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-150FAPSXDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 15″Aluminum, Panel, Standard Single Touch (Resistive), 4:3 1024X768, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-156AAPSFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 15.6″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-156AAPSFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 15.6″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-156AAPSFDNB-7EDBW19NNNDNN-NN1SASEM 6300P Panel PC, 15.6″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 32GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-156ACPMFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 15.6″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-156ACPMFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 15.6″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-156ECPMFDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 15.6″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-170BAPSTDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 17″Aluminum, Panel, Standard Single Touch (Resistive), 5:4 1280X1024, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-170BAPSTDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 17″Aluminum, Panel, Standard Single Touch (Resistive), 5:4 1280X1024, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-170FAPSTDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 17″Aluminum, Panel, Standard Single Touch (Resistive), 5:4 1280X1024, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-185AAPSFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 18.5″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-185AAPSFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 18.5″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-185AAPSFDNB-7EDBW19NNNDNN-NN1SASEM 6300P Panel PC, 18.5″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 32GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-185ACPMFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 18.5″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-185ACPMFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 18.5″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-185ECPMFDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 18.5″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-190BAPSTDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 19″Aluminum, Panel, Standard Single Touch (Resistive), 5:4 1280X1024, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-190BAPSTDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 19″Aluminum, Panel, Standard Single Touch (Resistive), 5:4 1280X1024, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-190FAPSTDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 19″Aluminum, Panel, Standard Single Touch (Resistive), 5:4 1280X1024, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-215AAPSFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 21.5″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-215AAPSFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 21.5″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-215AAPSFDNB-7EDBW19NNNDNN-NN1SASEM 6300P Panel PC, 21.5″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 32GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-215ACPMFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 21.5″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-215ACPMFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 21.5″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-215ECPMFDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 21.5″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-240AAPSFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 24″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-240AAPSFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 24″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-240AAPSFDNB-7EDBW19NNNDNN-NN1SASEM 6300P Panel PC, 24″Aluminum, Panel, Standard Single Touch (Resistive), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 32GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-240ACPMFDNB-3CBBW19NNNBNN-NN1SASEM 6300P Panel PC, 24″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i3, 8GB RAM, Windows 10 IoT LTSC (2019), 256 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-240ACPMFDNB-7DDBW19NNNDNN-NN1SASEM 6300P Panel PC, 24″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,1 PCI/PCIe, Intel Core i7, 16GB RAM, Windows 10 IoT LTSC (2019), 1TB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-240ECPMFDNA-CCAAW19NNNANN-NN1SASEM 6300P Panel PC, 24″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,No expansion, Intel Celeron, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-215ACPMFDND-5CAAW19NDNAAN-NN1SASEM 6300P Panel PC, 21.5″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,2 slots for 2.5 HDD/SDD, Intel Core i5, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
6300P-156ACPMFDND-5CAAW19NDNAAN-NN1SASEM 6300P Panel PC, 15.6″Aluminum and Glass TrueFlat, Panel, Multi-touch (PCAP), 16:9 1920×1080, 24 VDC isolated, Fanless ,2 slots for 2.5 HDD/SDD, Intel Core i5, 8GB RAM, Windows 10 IoT LTSC (2019), 128 GB SSD 2.5 TLC, No pre installed Rockwell Automation Software, Standard Warranty, Allen-Bradley Branded Bezel
