1719 Ex I/O Modules

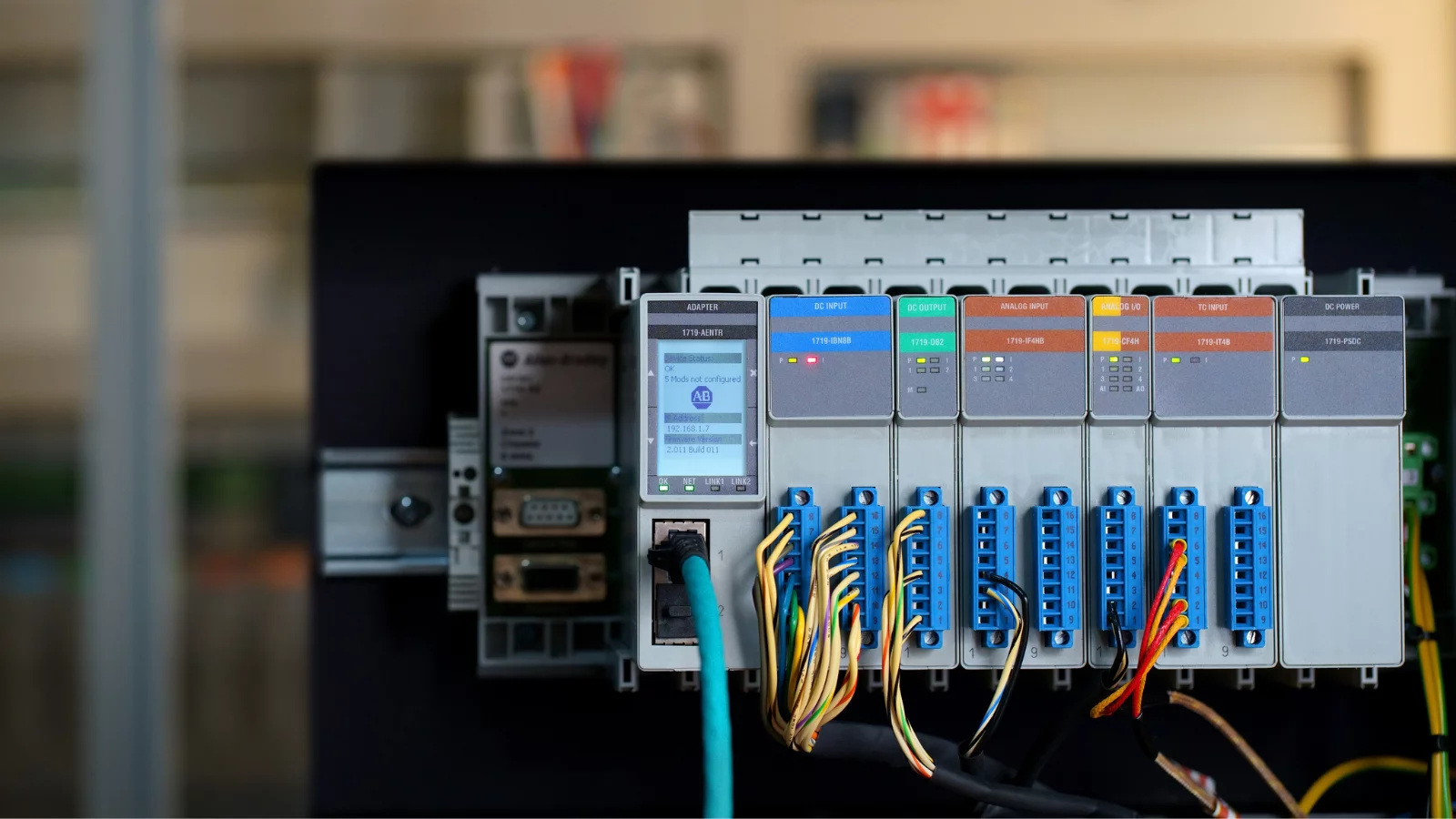

Our Bulletin 1719 Ex I/O modules are an intrinsically safe distributed I/O platform that can be mounted in Zone 2 or Class I, Div 2. This platform integrates devices in hazardous areas via EtherNet/IP™ in a chassis-based I/O design that provides maximum efficiency in a small space.

1719 Ex I/O |  Overview

Overview

  • Provides intrinsically safe I/O to satisfy application requirements, certified for Zone 2 or Class I, Div 2 mounting
  • Integrates with the Integrated Architecture® system for easy configuration
  • Connects on EtherNet/IP
  • Supports in RSLogix 5000® v24 and above with Add-on Profile
  • Offers compact, chassis-based I/O design where power supply is contained on the chassis
  • Includes DLR adapter and optional power supply redundancy
  • Offers HART 7 support that is standard on all analog modules

Product Selection

Catalog Number Description
1719-CF4HEx I/O 4 Channel HART AnalogConfigurable; Includes (1) 1719-TB8: Ex I/O 8 Pole Screw Terminal
1719-IF4HBEx I/O 4 Channel HART Analog Input Wide; Includes (1) 1719-TB8X2: Ex I/O 2×8 Pole Screw Terminal
1719-IR4BEx I/O 4 Channel RTD Input Wide; Includes (1) 1719-TB8X2: Ex I/O 2×8 Pole Screw Terminal
1719-IT4BEx I/O 4 Channel Thermocouple Input Wide; Includes (1) 1719-TB8X2: Ex I/O 2×8 Pole Screw Terminal
1719-IBN8BEx I/O 8 Point Digital Input NAMUR Wide; Includes (1) 1719-TB8X2: Ex I/O 2×8 Pole Screw Terminal
1719-IBN8Ex I/O 8 Point Digital Input NAMUR; Includes (1) 1719-TB8x2SA: Ex I/O 2×8 Pole Spring Terminal for IBN8
1719-OB2Ex I/O 2 Point Digital Output 23V; Includes (1) 1719-TB8: Ex I/O 8 Pole Screw Terminal
1719-OB2LEx I/O 2 Point Digital Output 16.5V; Includes (1) 1719-TB8: Ex I/O 8 Pole Screw Terminal
1719-IJEx I/O Frequency Counter; Includes (1) 1719-TB6: Ex I/O 6 Pole Screw Terminal
1719-PSDCEx I/O DC Power Supply
1719-SP1Ex I/O Separation Plate
1719-A8Ex I/O 8 Slot Base Chassis
1719-A22Ex I/O 22 Slot Base Chassis
1719-A24Ex I/O 24 Slot Extension Chassis; Includes (1) 1719-CBL
1719-TB8Ex I/O 8 Pole Screw Terminal
1719-TB8FEx I/O 8 Pole Front Screw Terminal
1719-TB8SEx I/O 8 Pole Spring Terminal
1719-TB8X2Ex I/O 2×8 Pole Screw Terminal
1719-TB8X2FEx I/O 2×8 Pole Front Screw Terminal
1719-TB8SX2Ex I/O 2×8 Pole Spring Terminal
1719-TB8X2SAEx I/O 2×8 Pole Spring Terminal for IBN8
1719-TB6Ex I/O 6 Pole Screw Terminal
1719-TB6FEx I/O 6 Pole Front Screw Terminal
1719-TB6SEx I/O 6 Pole Spring Terminal
1719-CBLEx I/O Chassis Extension Cable 1 m
1719-ARMEx I/O Empty Slot Cover; Includes (1) 1719-TB8: Ex I/O 8 Pole Screw Terminal
1719-AENTREx I/O EtherNet/IP Adapter
